CG3775S
Appleton CG3775S Straight Cord Connector
Part Number # CG3775S
SKU # 3149
Appleton CG3775S Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CG3775S |
| SKU #: | 3149 |
| UNSPSC: | 39121431 |
| UPC: | 00781381449335 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton CG3775S Straight Cord Connector
Brand: Appleton
Part Number: CG3775S
Appleton Straight Cord Connector, Strain Relief, Series: CG Series, 3/4 in, Cable Openings: 3/8 to 1/2 in, Threaded Hub, Machined Steel, Natural, Purple Label, 1-1/4 in W
Additional Description: APLE-CG3775S 3/4 IN STL L-T CRD AND CBL CONN
Catalog Description: Straight Liquidtight Strain Relief Connector, Size: 3/4 IN, Conductor Range: 3/8 - 1/2 IN, Material: Machined Steel, Color: Purple Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 1-1/4 IN Height, Standard: Class I, Div
CG3775S Application
For flexible type neoprene, hypalon and PVC jacketed power or control cord and cableCG3775S Item Features
- Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
- Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
- Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
- Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
- For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
- Silicone free
CG3775S Standards
CSA C22.2 File No.18.3|CSA 065178|UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III|UL 514B File No. E14817 ListedSKU #3149Part Number #CG3775SUNSPSC39121431UPC00781381449335

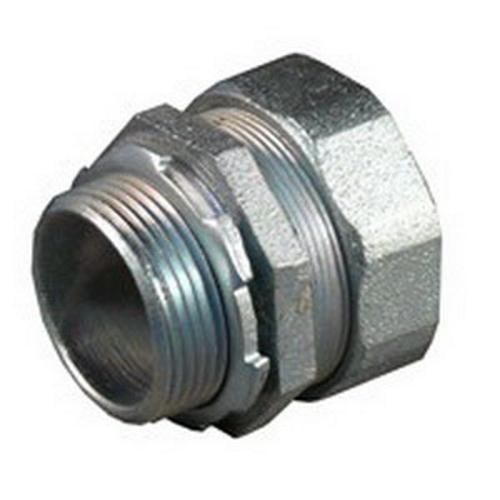

Image provided may only be a representation of final product and may include optional equipment
