CG75100

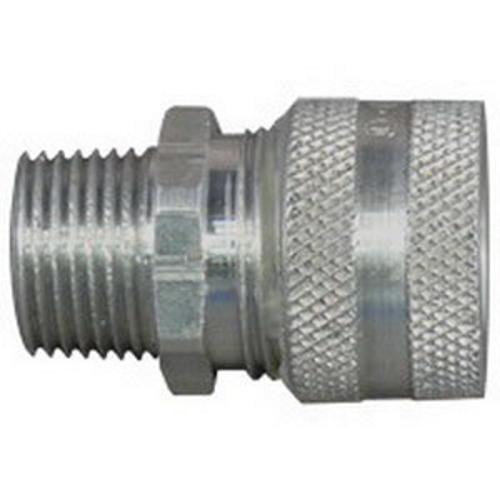

Appleton CG75100 Straight Cord Connector
Part Number # CG75100
SKU # 3157
$12.39 / Each
Typical price:$16.20 / Each
Appleton CG75100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CG75100 |
| SKU #: | 3157 |
| Cable Openings: | 3/4 to 7/8, 3/4 to 7/8 in |
| Dimensions: | 1-3/4 in Dia |
| Finish: | Natural |
| Series: | CG Series |
| Trade Size: | 1, 1 in |
| Type: | Strain Relief |
| Color: | Gray Label |
| Connection type: | Threaded Hub |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00781381191807 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.39 / Each
Typical price:$16.20 / Each
Quantity:
- Appleton Straight Cord Connector, Strain Relief, Series: CG Series, 1 in, Cable Openings: 3/4 to 7/8 in, Threaded Hub, Aluminum, Natural, Gray Label, 1-3/4 in Dia
CG75100 Application
For flexible type neoprene, hypalon and PVC jacketed power or control cord and cableCG75100 Item Features
- Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
- Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
- Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
- Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
- For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
- Silicone free
CG75100 Standards
CSA C22.2 File No.18.3|CSA 065178|UL Listed for Class I, Div 2|Class II, Div 1 and 2|Class III|UL 514B File No. E14817 ListedSKU #3157Part Number #CG75100UNSPSC39121431UPC00781381191807
