Part Number # CG903775
SKU # 3194
Image Disclaimers Message
CG903775

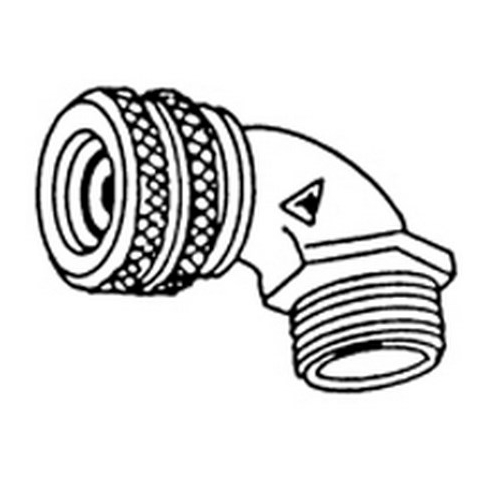

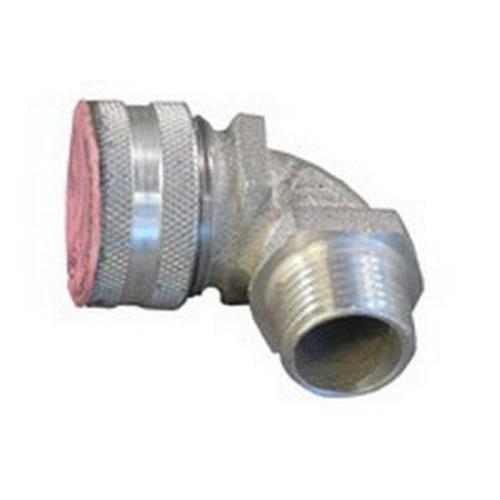

Appleton CG903775 Liquidtight Strain Relief Connector
Part Number # CG903775
SKU # 3194
$511.00 / 25Each
Typical price:$668.25 / Each
Appleton CG903775 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CG903775 |
| SKU #: | 3194 |
| Angle: | 90, 90 deg |
| Cable Openings: | 3/8 to 1/2, 3/8 to 1/2 in |
| Dimensions: | 1.38 in OD |
| Trade Size: | 3/4, 3/4 in |
| Color: | Purple |
| Connection type: | Thread, Threaded |
| Country of origin: | MX |
| Material: | Cast Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00781381189651 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$511.00 / 25Each
Typical price:$668.25 / Each
Quantity:
- Appleton Liquidtight Strain Relief Connector, 3/4 in Trade, Cable Openings: 3/8 to 1/2 in, Thread Connection, 90 deg Angle, Cast Aluminum, Purple, 1.38 in OD Dimensions
CG903775 Application
Used to provide a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable and for use in wet or dry locationsCG903775 Item Features
- Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
- Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
- Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
- Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
- For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
- Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
CG903775 Standards
Class I, Div 2, Class II, Div 1, 2, Class III|UL 514B File No. E14817 Listed|CSA C22.2 No. 18.3|CSA 065178 CertifiedSKU #3194Part Number #CG903775UNSPSC39121431UPC00781381189651
