Part Number # CG9075100S
SKU # 2458668
CG9075100S
Appleton CG9075100S
Part Number # CG9075100S
SKU # 2458668
Appleton CG9075100S Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CG9075100S |
| SKU #: | 2458668 |
| Angle: | 90 deg |
| Cable Openings: | 3/4 to 7/8 in |
| Dimensions: | 1-3/4 in OD |
| Trade Size: | 1 in |
| Connection type: | Thread |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00781381449120 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton CG9075100S
Brand: Appleton
Part Number: CG9075100S
Appleton® Liquidtight Strain Relief Connector, 1 in Trade, Cable Openings: 3/4 to 7/8 in, Thread Connection, 90 deg Angle, Malleable Iron, Grey, 1-3/4 in OD Dimensions
Additional Description: APLE-CG9075100S 1 IN STL L-T CRD AND CBL CONN
Catalog Description: 90 DEG Liquidtight Strain Relief Connector, Size: 1 IN, Conductor Range: 3/4 - 7/8 IN, Material: Malleable Iron, Color: Gray Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Standard: Class I, Division 2, Class II, Division 1 An
CG9075100S Application
Used to provide a liquidtight and strain relief termination for flexible type neoprene, hypalon and PVC jacketed power or control cord and cable and for use in wet or dry locationsCG9075100S Item Features
- Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
- Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
- Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
- Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
- For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
- Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
CG9075100S Standards
Class I, Div 2, Class II, Div 1, 2, Class III|UL 514B|UL File No. E14817|CSA C22.2 No. 18.3|CSA 065178SKU #2458668Part Number #CG9075100SUNSPSC39121431UPC00781381449120

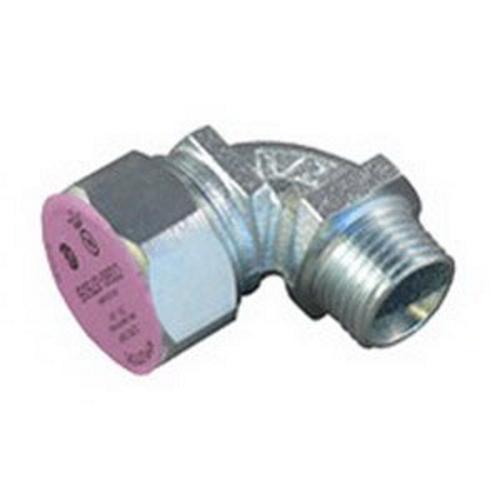

Image provided may only be a representation of final product and may include optional equipment
