CHM100T

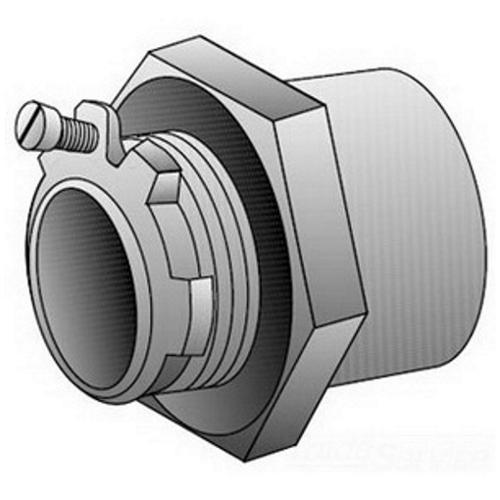

Appleton CHM100T Conduit Hub
Part Number # CHM100T
SKU # 2159835
Appleton CHM100T Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CHM100T |
| SKU #: | 2159835 |
| Dimensions: | 2 in Dia x 1-3/4 in L |
| Finish: | Electro-Plated Zinc |
| Series: | CHM-T |
| Size: | 1, 1 in |
| Suitable For Use With: | IMC/Rigid Conduit |
| Type: | Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00783126194272 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton CHM100T Conduit Hub
Brand: Appleton
Part Number: CHM100T
O-Z/Gedney Conduit Hub, Raintight, Series: CHM-T, 1 in, For Use With: IMC/Rigid Conduit, Malleable Iron, Electro-Plated Zinc, 2 in Dia x 1-3/4 in L
Additional Description: APLE-CHM100T (N) 1 IN COND HUB RMC/IMC INSUL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: OZ-Gedney Type CHM-T Raintight Conduit Hub, Size: 1 IN, Malleable Iron, Finish: Zinc Electroplated, Connection: Male X 1-11-1/2 Tapered FNPT, Dimensions: 2 IN Diameter X 1-3/4 IN Length, Box Wall Thickness: 11/32 IN, Third Party Certification: UL
CHM100T Application
Wet and Hazardous LocationsCHM100T Item Features
- Insulated throat form with bonding locknut
- Suitable for service entrance application
- Recessed O-ring seal assures watertight and dust tight connections
- Male x 1-11-1/2 apered FNPT connection
CHM100T Standards
UL File No. 11853|UL 514B|CSA 009795|CSA C22.2 No.18|Federal Specification W-F-408E|Class I, Division 2/Class II, Division 1, 2/Class III, Division 1, 2 Per NEC 501-4(b), 501.10(b)(4), 502-4(a)(2), 503-3(a)|ARRA CompliantSKU #2159835Part Number #CHM100TUNSPSC39121311UPC00783126194272
