CHM50
Appleton CHM50 Raintight Conduit Hub
Part Number # CHM50
SKU # 2205424
Appleton CHM50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CHM50 |
| SKU #: | 2205424 |
| Dimensions: | 1-1/2 in Dia x 1-3/8 in L |
| UNSPSC: | 39121311 |
| UPC: | 00783126194005 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton CHM50 Raintight Conduit Hub
Brand: Appleton
Part Number: CHM50
O-Z/Gedney Raintight Conduit Hub, Series: CHM, 1/2 in Size, For Use With: IMC/Rigid Conduit, Malleable Iron, Zinc Electroplated Finish, 1-1/2 in Dia x 1-3/8 in L Dimensions
Additional Description: APLE-CHM50 1/2 IN COND HUB RMC/IMC
Catalog Description: OZ-Gedney Type CHM Raintight Conduit Hub, Size: 1/2, Malleable Iron, Finish: Zinc Electroplated, Connection: Male X 1/2-14 Tapered FNPT, Dimensions: 1-1/2 IN Diameter X 1-3/8 IN Length, Box Wall Thickness: 5/16 IN, Third Party Certification: UL Fil
CHM50 Application
For rigid conduit and IMCCHM50 Item Features
- Male thread type
- Tapered female thread for rigid conduit and IMC
- Recessed O-ring seal assures watertight and dust tight connections
CHM50 Standards
UL File No. 11853 for Wet Locations|CSA 009795|UL 514B|CSA C22.2 No. 18|Federal Specification W-F-408E|NEMA FB-1/4/12|UL Listed for Class I, Division 2, Class II, Division 1, 2, Class III, Division 1, 2 Per NEC 501-4(b), 501.10(b)(4), 502-4(a)(2), 503-3(a) Hazardous Locations|ARRA CompliantSKU #2205424Part Number #CHM50UNSPSC39121311UPC00783126194005

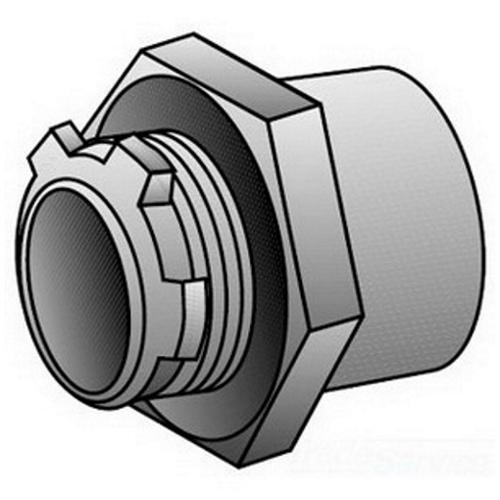

Image provided may only be a representation of final product and may include optional equipment
