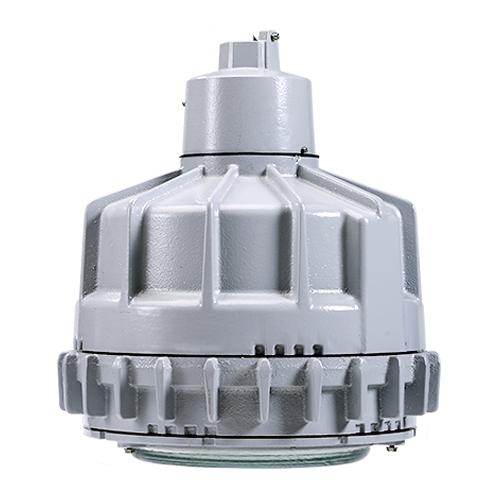

Appleton CMLEDA402G5BUC Explosionproof Luminaire
Part Number # CMLEDA402G5BUC
SKU # 2347042
Appleton CMLEDA402G5BUC Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CMLEDA402G5BUC |
| SKU #: | 2347042 |
| Amperage Rating: | 1.05/0.47, 1.05/0.47 A |
| Color Rendering Index (CRI): | 70 |
| Dimensions: | 15.1 in L x 13 in W |
| Enclosure Type: | NEMA 3R/4X/5/IP66/IP67 |
| Fixture Wattage: | 127/128, 127/128 W |
| Housing Finish: | Painted Gray Baked Epoxy Clad |
| Lamp Type: | LED |
| Lens Type: | Clear Polycarbonate Glass, Polycarbonate |
| Lumens: | 13732, 13732 Lumens |
| Series: | CMLED |
| Type: | Cylindrical Dust-Ignitionproof Factory Sealed |
| Country of origin: | MX |
| Housing material: | Cast Copper Free Aluminum |
| Mounting type: | Pendant |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39112102 |
| UPC: | 00781381407205 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton CMLEDA402G5BUC Explosionproof Luminaire
Brand: Appleton
Part Number: CMLEDA402G5BUC
Appleton Code Master Explosionproof Luminaire, Cylindrical Dust-Ignitionproof Factory Sealed, Series: CMLED, 120 to 277 VAC, 127/128 W Fixture, 1.05/0.47 A, LED Lamp, 60000 hr Average Life, 5650 K Color Temperature, 70 CRI, Polycarbonate Lens, 13732 Lumens, NEMA 3R/4X/5/IP66/IP67 Enclosure, Pendant Mounting, Cast Copper Free Aluminum Housing Material, Painted Gray Baked Epoxy Clad Housing Finish, 15.1 in L x 13 in W Dimensions
Additional Description: APLE-CMLEDA402G5BUC (N) CMLED,400W,G5,BU,3/4 PEND W SC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Appleton,CodeMaster,Factory Sealed Luminaire,Clear Globe, Safety Cable,General Purpose Lighting,Class I Division 1, Class II Division 1, Class II Division II, Class III,Equivalent to 70W HPS/PSMH WATTS,2582 ,120-277 VAC,LED, Painted Grey with 5650K CCT, Cylindrical, 60000 hours, Pendant,
CMLEDA402G5BUC Application
Chemical, Oil, Gas, Petrochemical, Pulp and Paper, Foundries, Manufacturing, Waste and Sewage Treatment, Pharmaceutical, Mining, Power Generation and General Purpose LightingCMLEDA402G5BUC Item Features
- 60000 hr rated life eliminates the need for frequent relamping
- Arrangement of heat producing components results in more efficient heat dissipation for cooler fixture operation
- All threaded joints are flame-tight
- Fixture housing and mounting hoods are copper free cast aluminum with baked epoxy finish, all exposed hardware is stainless steel
- Aluminum body utilizes the same Code Master HID mounting hoods and is an easy retrofit for existing Code Master HID installations, can be pendant, ceiling, wall or stanchion mounted
- ACME double-lead threads speed installation and fixture removal from mounting hood only half as many turns are required as for single lead threads
- The threads do not stick or gall, eliminating the troublesome problems often encountered with single lead threads during fixture unit removal
- Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing or for immediate replacement with a stand by unit
- External seals are not required
- Lens, driver and LED array are all field replaceable
CMLEDA402G5BUC Standards
UL 50/50E/844/1598/1598A/8750|CAN/CSA-C22.2 No. 94.1-07 (R2012)|CAN/CSA-C22.2 No. 94.2-07 (R2012)|CAN/CSA-C22.2 No. 137- M1981 (R2009)|CAN/CSA-C22.2 No. 250.0-08 (R2013)|CAN/CSA-C22.2 No. 250.13|CAN/CSA-C22.2 No. 60529-05 (R2010) Certified|ANSI/IEC 60529|cCSAus 70030675|NEC/CEC Class I, Division 1 and 2, Groups B, C, D Class I, Zone 1 Group IIB + H2 Class II, Division 1, Group E, F, G Class II, Division 2, Group F, G Class IIISKU #2347042Part Number #CMLEDA402G5BUCUNSPSC39112102UPC00781381407205
