CPU2075

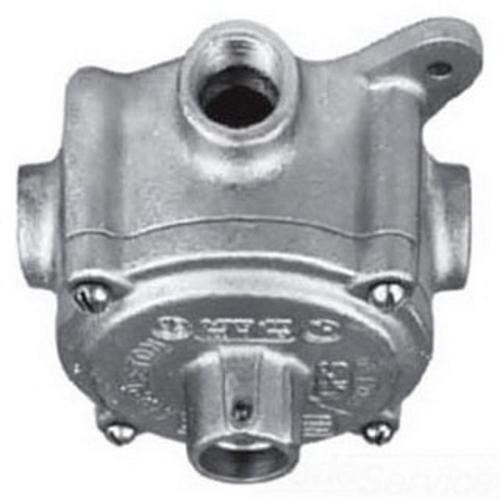

Appleton CPU2075 Conduit Outlet Box
Part Number # CPU2075
SKU # 2313084
Appleton CPU2075 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | CPU2075 |
| SKU #: | 2313084 |
| Cover Opening Size: | 3.81 in |
| Dimensions: | 7.38 in H x 3.69 in W |
| Hub Size: | 1/2 to 3/4 in |
| Series: | CPU |
| UNSPSC: | 39121308 |
| UPC: | 00781381299596 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton CPU2075 Conduit Outlet Box
Brand: Appleton
Part Number: CPU2075
Appleton UNILETS Conduit Outlet Box, Universal, Series: CPU, 1/2 to 3/4 in Hub, 3.81 in Cover Opening, 4 Gangs, 21 cu-in Capacity, For Use With: Threaded Metal Conduit, Malleable Iron, Triple Coated Finish, 7.38 in H x 3.69 in W Dimensions
Additional Description: APLE-CPU2075 CPU UNILET W/3/4HUB COVER
Catalog Description: UNILETS CPU Universal Outlet Box With Hub Cover, Number Of Outlet: 4, Material: Malleable Iron, Size: 1/2 - 3/4 IN, Cable Entry: (4) 1/2 - 3/4 IN Hub, Cubic Capacity: 21 CU-IN, Knockouts: No, Cover Opening: 3.81 IN, Fixture Stem Size: 3/
CPU2075 Application
For connect conduit lengths and change direction of conduit runsCPU2075 Includes
(5) 3/4 to 1/2 in Reducers, (4) Threaded Universal 3/4 in Hubs and (3) 1/2 in Close Up PlugsCPU2075 Item Features
- Explosion proof and dust-ignition proof
- Universal design furnished with 4 threaded universal 3/4 in hubs, four 3/4 to 1/2 in reducers and three 1/2 in close up plugs
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Wide, accurately ground explosion proof mating surfaces
- Serve as mounting outlets for lighting fixtures when used with hub cover
CPU2075 Standards
UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class IIICPU2075 Warranty
1 YearSKU #2313084Part Number #CPU2075UNSPSC39121308UPC00781381299596
Image provided may only be a representation of final product and may include optional equipment
