Part Number # EBR1034HFB100
SKU # 2456452
EBR1034HFB100
Appleton EBR1034HFB100
Part Number # EBR1034HFB100
SKU # 2456452
Appleton EBR1034HFB100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EBR1034HFB100 |
| SKU #: | 2456452 |
| Amperage Rating: | 100 A |
| Dimensions: | 17.3 in H x 9.06 in W x 13.95 in D |
| Frequency Rating: | 60 Hz |
| Horsepower: | 50 hp |
| NEMA Rating: | NEMA 3/3R/4/4X/7CD/9FG |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | EBR |
| Terminal Type: | Pressure Wire |
| Type: | Dust-Ignitionproof |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381188029 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EBR1034HFB100
Brand: Appleton
Part Number: EBR1034HFB100
Appleton® Explosionproof Receptacle, Dust-Ignitionproof, Series: EBR, 600 VAC, 100 A, 50 hp, 60 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X/7CD/9FG NEMA Rating, Pressure Wire Terminal, Copper Free Aluminum, 17.3 in H x 9.06 in W x 13.95 in D Dimensions
Additional Description: APLE-EBR1034HFB100 EBR 100A 3W 4P WEST HFB 100A
Catalog Description: Explosionproof Pin and Sleeve Receptacle and Circuit Breaker, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Voltage Rating 600 VAC, Breaker Current Rating 100 Ampere, Receptacle Voltage Rating 600 VAC, Receptacle Current Rating 100 Ampere, Receptacle Configuration 4 Pole 3 Wire, Number of Breaker Poles 3, Breaker Type FD, Hub Size (1) 3/4 Inch, (1) 1-1/2 Inch (Top), (1) 3/4 Inch, (2) 1-1/2 Inch (Bottom), Hub Location Top, Bottom, Number of Hubs 3, Mating Plug ACP1034CD, Grounding Style Shell, Extra Pole, Enclosure Material Copper-Free Aluminum, Enclosure Finish Epoxy Powder Coated, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/7CD/9FG, Size 9.06 inch W x 13.95 Inch x 17.3 Inch H, Approval UL 894/1010/1203/1682/1686, Insulating Blocks Material Fiber Glass Reinforced Polyester, Application Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors, Pumps
EBR1034HFB100 Application
Air Conditioners, Compressors, Conveyors, Heaters, Motor Generators, Lighting Systems, Pumps, Locations Where Damp or Corrosive Conditions Exist and Process Industries, Petrochemical Plants, Petroleum Refineries, Paint and Chemical Plants ApplicationsEBR1034HFB100 Item Features
- EBR interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection
- To operate, insert plug which automatically locks into receptacle and turn breaker handle to On position, to remove plug, turn handle to Off position, lift plug release knob and pull plug out
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Shell and extra pole grounding style 2
- Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied
- Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Plug mechanical cable clamps prevent strain on cables they meet or exceed UL strain relief pull out requirements
- Neoprene bushing compressed by cable collar prevents entrance of water
- 1-1/2 in NPT tapped conduit openings one in top and two in bottom
- ACP and CPH plug fits Powertite series hazardous location and EBR receptacles
EBR1034HFB100 Standards
UL 1010|UL 1203|UL 894|UL 1682|UL 1686|UL File No. E79132/E10784/E313360|NEC Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups F, G Class IIISKU #2456452Part Number #EBR1034HFB100UNSPSC39121406UPC00781381188029

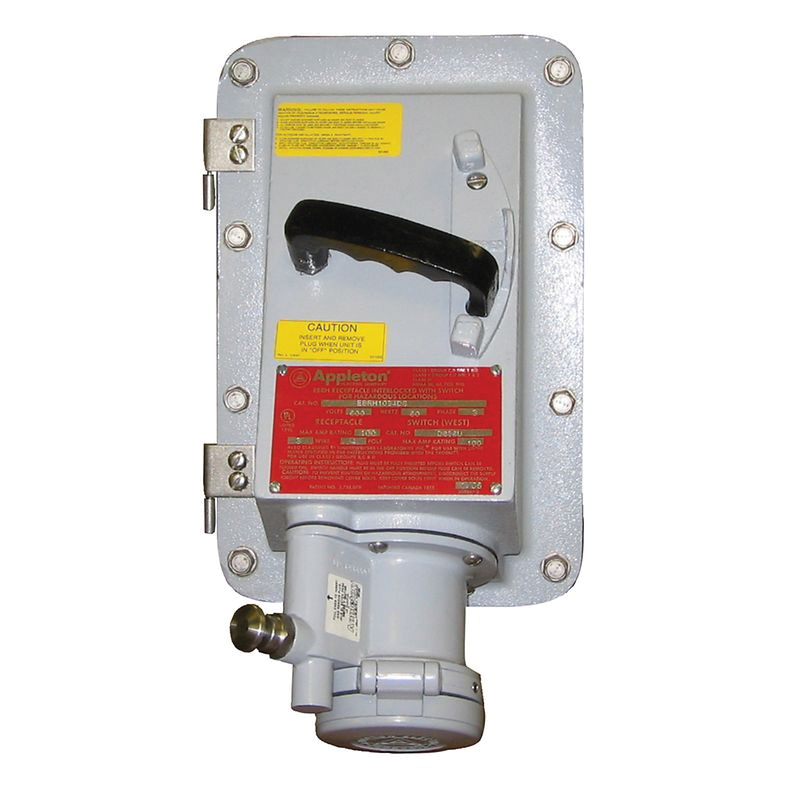

Image provided may only be a representation of final product and may include optional equipment
