Part Number # EBR15034FD150
SKU # 2201129
Image provided may only be a representation of
final product and may include optional equipment
EBR15034FD150

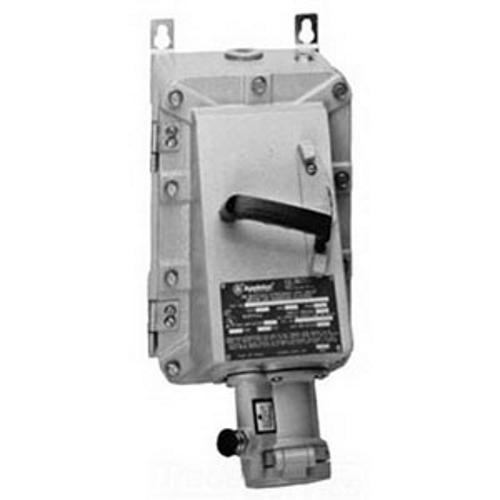

Appleton EBR15034FD150 Receptacle
Part Number # EBR15034FD150
SKU # 2201129
Appleton EBR15034FD150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EBR15034FD150 |
| SKU #: | 2201129 |
| Amperage Rating: | 150, 150 A |
| Dimensions: | 16.83 in H x 9.06 in W x 13.95 in D |
| Frequency Rating: | 60, 60 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X/7CD/9FG |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | EBR |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | Dust Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381089906 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EBR15034FD150 Receptacle
Brand: Appleton
Part Number: EBR15034FD150
Appleton Receptacle, Dust Ignitionproof Explosionproof, Series: EBR, 600 VAC, 150 A, 60 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X/7CD/9FG NEMA Rating, Pressure Wire Terminal, Copper Free Aluminum, 16.83 in H x 9.06 in W x 13.95 in D Dimensions
Additional Description: APLE-EBR15034FD150 EBR 150A II 3W4P FD 150A BRKR
Catalog Description: EBR Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 150 AMP, Voltage Rating: 600 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X,
EBR15034FD150 Application
For ACP plugsEBR15034FD150 Standards
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360SKU #2201129Part Number #EBR15034FD150UNSPSC39121406UPC00781381089906
