EBR15034FD150K

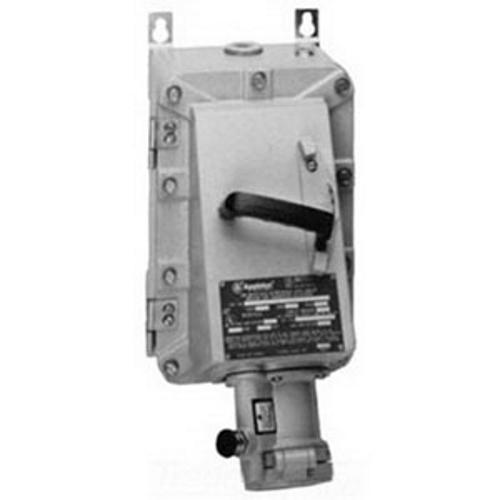

Appleton EBR15034FD150K Receptacle
Part Number # EBR15034FD150K
SKU # 2358793
$9069.96 / Each
Appleton EBR15034FD150K Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EBR15034FD150K |
| SKU #: | 2358793 |
| Amperage Rating: | 150, 150 A |
| Dimensions: | 9.06 in W x 13.95 in D x 17.3 in H |
| NEMA Rating: | NEMA 3/3R/4/4X/7CD/9FG |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | EBR |
| Country of origin: | MX |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381134415 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9069.96 / Each
Quantity:
- Appleton Receptacle, Series: EBR, 600 V AC, 150 A, 4 Pole, 3 Wires, NEMA 3/3R/4/4X/7CD/9FG, Copper-Free Aluminum, 9.06 in W x 13.95 in D x 17.3 in H
EBR15034FD150K Application
For locations where receptacles are used with stationary or portable electrically operated devices such as lighting systems, conveyors, heaters, motor generator sets, air conditioners, compressors, pumps and damp or corrosive conditions existEBR15034FD150K Item Features
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied
- Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs
- Plug mechanical cable clamps prevent strain on cables, they meet or exceed UL strain relief pull-out requirements
- Neoprene bushing compressed by cable collar prevents entrance of water
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- 1-1/2 in NPT tapped conduit openings, one top to bottom
- 2 or 3 pole, non-fused motor circuit switch
- EBR and DBR: Interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection
- To operate, insert plug (which automatically locks into receptacle) and turn breaker handle to on position
- To remove plug, turn handle to off position, lift plug release knob and pull plug out
- ACP and CPH plug fits Powertite series hazardous location EBR, EBRH and DBR receptacles
- EBR, EBRH and DBR receptacles: copper-free aluminum receptacle and mounting box
- copper-free aluminum housings CPH and ACP plugs
- Insulating blocks: Fiberglass reinforced polyester
- Epoxy powder coated receptacles, mounting boxes, cord connector housings and caps
- Weather-proof spring cover
- Constructional feature explosionproof and dust-ignitionproof
- Shell and extra pole grounding style
EBR15034FD150K Standards
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360SKU #2358793Part Number #EBR15034FD150KUNSPSC39121406UPC00781381134415
