EBRH1034DS

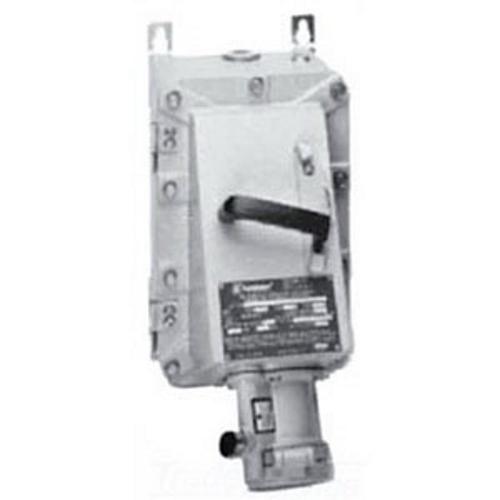

Appleton EBRH1034DS Explosionproof Receptacle
Part Number # EBRH1034DS
SKU # 2258940
$7108.68 / Each
Appleton EBRH1034DS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EBRH1034DS |
| SKU #: | 2258940 |
| Amperage Rating: | 100 A |
| Horsepower: | 75 hp |
| NEMA Rating: | NEMA 3/3R/4/4X/7CD/9FG |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | EBRH |
| Terminal Type: | Pressure Wire |
| Type: | 3-Phase Dust-Ignitionproof Explosionproof Grounding Style 2 |
| Country of origin: | MX |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381513340 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7108.68 / Each
Quantity:
- Appleton Explosionproof Receptacle, 3-Phase Dust-Ignitionproof Explosionproof Grounding Style 2, Series: EBRH, 600 V AC, 100 A, 75 hp, 4 Pole, 3 Wires, NEMA 3/3R/4/4X/7CD/9FG NEMA Rating, Pressure Wire Terminal, Copper-Free Aluminum
EBRH1034DS Application
ACP Plugs, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps ApplicationsEBRH1034DS Item Features
- Shell and extra pole grounding style 2
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied
- Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Contacts have beryllium copper wire springs, plug mechanical cable clamps prevent strain on cables they meet or exceed UL strain relief pull out requirements
- Neoprene bushing compressed by cable collar prevents entrance of water
- 1-1/2 NPT tapped conduit openings one top to bottom
- Interlocked disconnect switch provides safe connect and disconnect operation
- Fiberglass reinforced polyester insulating blocks
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
EBRH1034DS Standards
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E79132, E10784, E313360SKU #2258940Part Number #EBRH1034DSUNSPSC39121406UPC00781381513340
