EDKB12
Appleton EDKB12
Part Number # EDKB12
SKU # 2466450
Appleton EDKB12 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EDKB12 |
| SKU #: | 2466450 |
| Enclosure Type: | NEMA 3/7/9 |
| Legend: | Hand/Auto |
| Series: | EDKB |
| UNSPSC: | 39122217 |
| UPC: | 00781381673884 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EDKB12
Brand: Appleton
Part Number: EDKB12
Appleton® Selector Switch Assembly, 2-Circuit, Series: EDKB, 600 VAC, 10 A, 1NC-1NO Contact Configuration, Maintained Contact Mode, Legend: Hand/Auto, NEMA 3/7/9 Enclosure, Surface Mounting, Aluminum, Natural
Additional Description: APLE-EDKB12 2 POS 2 CKT SEL SW COV ASSY
Catalog Description: Contender EDKB Series 2 Circuit Selector Switch With Cover, Number Of Steps: 2, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 1/2 IN NPSM, Operation: Momenta
EDKB12 Application
For installation in chemical and petrochemical plants, refineries and other process industriesEDKB12 Item Features
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Copperfree (4/10 of 1% maximum) aluminum operator mechanism, nylon cam and sealed phenolic contact block
EDKB12 Standards
UL 508/698/1203|CSA C22.2 No. 14|cULus E10449SKU #2466450Part Number #EDKB12UNSPSC39122217UPC00781381673884

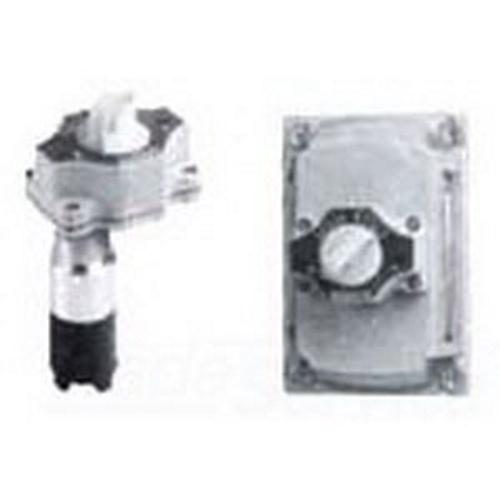

Image provided may only be a representation of final product and may include optional equipment
