Part Number # EDS318
SKU # 2276275

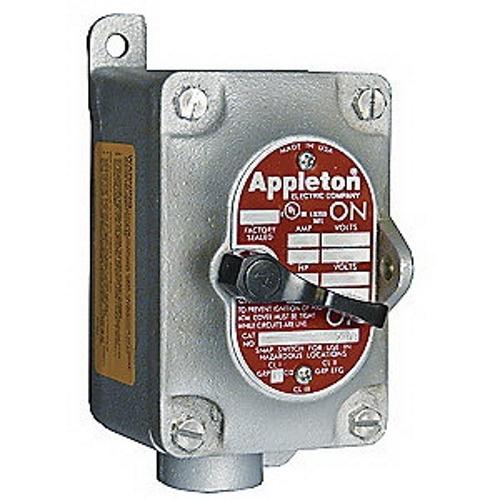

Image provided may only be a representation of
final product and may include optional equipment
EDS318
Appleton EDS318 Tumbler Switch Control Station
Part Number # EDS318
SKU # 2276275
Appleton EDS318 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EDS318 |
| SKU #: | 2276275 |
| Actuator: | Front Operated Lever |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 6.81 in H x 3.72 in W x 5.31 in D |
| Finish: | Triple Coated |
| Legend: | On/Off |
| NEMA Rating: | NEMA 3/7CD/9EFG |
| Number of Poles: | 2 |
| Series: | EDS |
| Type: | 1-Gang Dead End Sealed |
| Connection type: | Thread, Threaded |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381696982 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EDS318 Tumbler Switch Control Station
Brand: Appleton
Part Number: EDS318
Appleton Contender Tumbler Switch Control Station, 1-Gang Dead End Sealed, Series: EDS, 120/277 VAC, 20 A, 2 Pole, Legend: On/Off, Front Operated Lever Actuator, Thread Connection, NEMA 3/7CD/9EFG NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 6.81 in H x 3.72 in W x 5.31 in D Dimensions
Additional Description: APLE-EDS318 1-G 1 SNAP SWITCH STA-FS
Catalog Description: Contender EDS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 2, Actuator: Front Operated, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 1 IN Dead-End Hub, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 5.31 IN, Width: 3.72 IN, Depth: 5.31 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1, Groups C, D, Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
EDS318 Application
Used in classified areas where ignitable vapors, gases or highly combustible dusts are present, installation in chemical plants, petrochemical plants, refineries and other process industriesEDS318 Includes
Internal Ground ScrewEDS318 Item Features
- Corrosion resistant, pad lockable in the on or off position
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure
- Stainless steel hex head screws attach sealing chamber to cover and mounting enclosure
- Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements
- Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
- Explosion proof dust-ignitionproof
EDS318 Standards
Class I, Div 1 and Groups C D, Class I, Div 2 and Groups B C D, Class II, Div 1 and 2 Groups E F G, Class III|UL 508/698/1203/1604SKU #2276275Part Number #EDS318UNSPSC39121565UPC00781381696982
