Brand: Appleton
EDS6036AUX

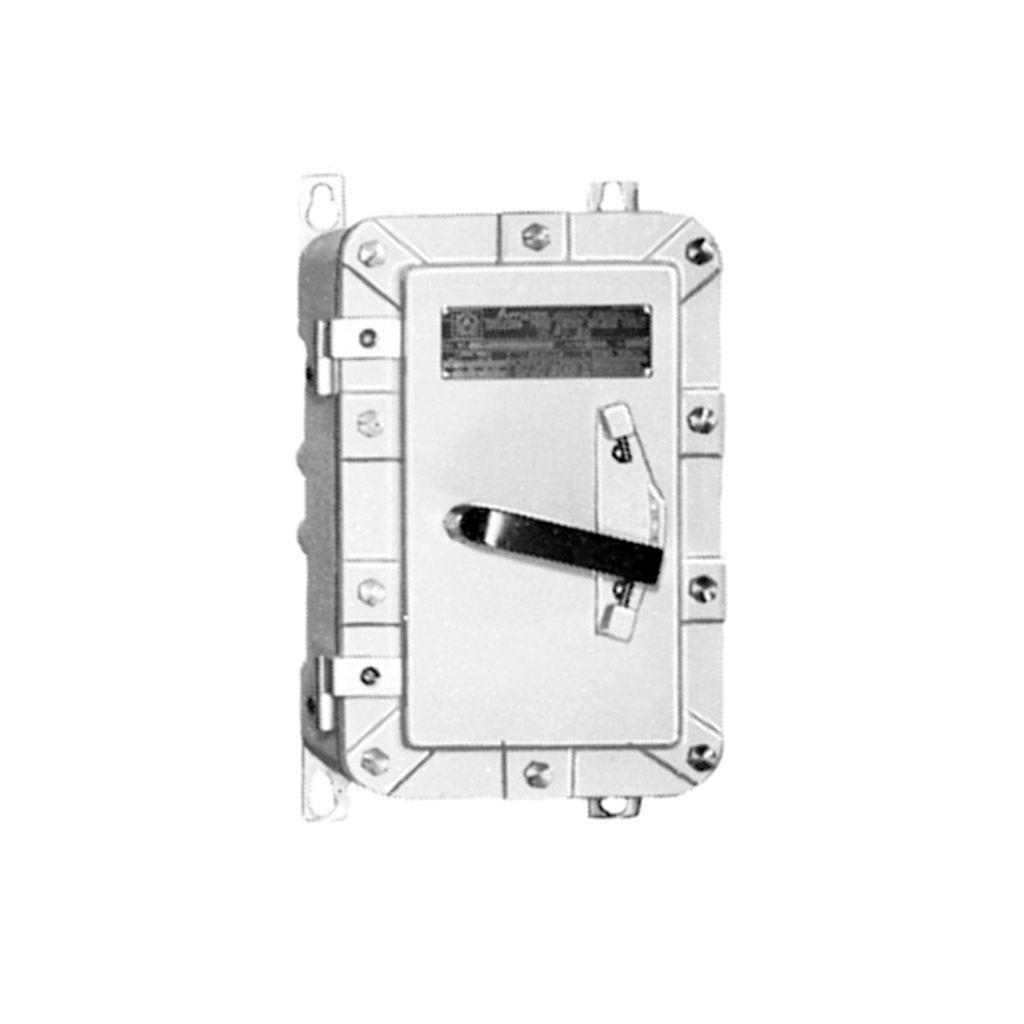

Appleton EDS6036AUX Disconnect Switch
Part Number # EDS6036AUX
SKU # 2328504
$3890.69 / Each
Appleton EDS6036AUX Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EDS6036AUX |
| SKU #: | 2328504 |
| Actuator Type: | Internal Handle |
| Amperage Rating: | 30, 60, 100 A |
| Contact Form: | 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Dimensions: | 7.25 in H x 9.63 in W x 16.75 in L |
| Enclosure Type: | NEMA 3R/4/4X/7BCD/9EFG |
| Finish: | Epoxy Powder Coated |
| Number of Poles: | 3 |
| Phase: | 3, 3 ph |
| Series: | EDS |
| Type: | Heavy Duty |
| Material: | Copper-Free Aluminum |
| Mounting type: | Spring |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122233 |
| UPC: | 00078138167139 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3890.69 / Each
Quantity:
- Appleton, EDS6036AUX, Disconnect Switch, Heavy Duty, Series: EDS, 600 V AC, 30, 60, 100 A, 3 ph, 3 Pole, 1NO-1NC 1 Form A/1 Form B Contact Form, Internal Handle Actuator, NEMA 3R/4/4X/7BCD/9EFG Enclosure, Spring Mounting, 7.25 in H x 9.63 in W x 16.75 in L Dimensions, Copper-Free Aluminum, Epoxy Powder Coated
EDS6036AUX Item Features
- Explosionproof, dust-ignitionproof
- Functions as load disconnect switch or as individual motor control switch
- Hinged, removable cover provides instant access for installation and servicing
- Self-locating, spring-mounted internal handle actuator
- Rugged handle has stainless steel shaft within a stainless steel bushing, may be locked in ON or OFF position
- Removable mounting plate simplifies installation
- Top and bottom standard feed-thru conduit openings
- Removable reducer bushing furnished with each opening
- Additional top and bottom openings for drain and breather, supplied with close-up plugs
- Covers have captive, slotted, stainless steel screws to prevent freezing
- Insulated neutral lug supplied as standard
- For 200 A, please contact your local sales representative
EDS6036AUX Standards
CEC/NEC Certified Class I, Division 1 and 2, Groups B, C, D/Class II, Division 1 and 2, Groups E, F, G/Class III/NEMA 4, 4X, 7BCD, 9EFGSKU #2328504Part Number #EDS6036AUXUNSPSC39122233UPC00078138167139
