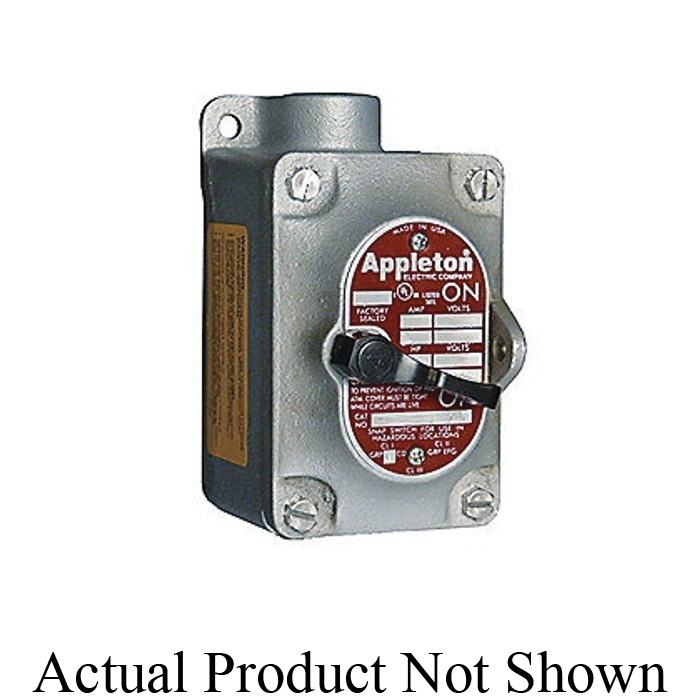

Image Disclaimers Message
EDSC150F3W
Appleton EDSC150F3W
Part Number # EDSC150F3W
SKU # 2436407
$284.66 / Each
Typical price:$297.80 / Each
Appleton EDSC150F3W Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EDSC150F3W |
| SKU #: | 2436407 |
| Actuator: | Lever |
| Amperage Rating: | 20 A |
| Dimensions: | 5.38 in H x 3 in W x 4.69 in D |
| Finish: | Triple Coated |
| NEMA Rating: | NEMA 7BCD/9EFG |
| Series: | EDSC |
| Type: | 1-Gang 3-Way Feed-Through |
| Connection type: | Thread |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381325523 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$284.66 / Each
Typical price:$297.80 / Each
Quantity:
- Appleton UNILETS Explosionproof Tumbler Switch, 1-Gang 3-Way Feed-Through, Series: EDSC, 120 to 277 V AC, 20 A, Lever Actuator, Thread Connection, NEMA 7BCD/9EFG NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 5.38 in H x 3 in W x 4.69 in D Dimensions
EDSC150F3W Application
Used in classified areas where ignitable vapors, gases or highly combustible dusts are present and installed in chemical plants, petrochemical plants, refineries and other process industriesEDSC150F3W Includes
Internal Ground ScrewEDSC150F3W Item Features
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Factory sealed switches are designed to a UL standard so that any arcing devices are contained within an explosionproof labyrinth switch
- Tumbler switch devices are approved for installation without additional external sealing fittings
- 20 A 4-way and all 30 A models utilize a switch enclosed in separate sealing chamber
- Smooth double face, accurately ground surfaces on sealing chamber flange mate with cover and body to provide positive flametight construction
- Sealing chamber has prewired factory sealed pigtail leads to switch
- Threaded stainless steel operating handle provides positive corrosion resistant operation
- Corrosion resistant, strong stainless steel hex head cap screws attach cover or body or sealing chamber assembly for approved flame-tight construction
- Pad lockable in the on or off position
EDSC150F3W Standards
UL 894/1203|E10523|E81751SKU #2436407Part Number #EDSC150F3WUNSPSC39121565UPC00781381325523
