Brand: Appleton

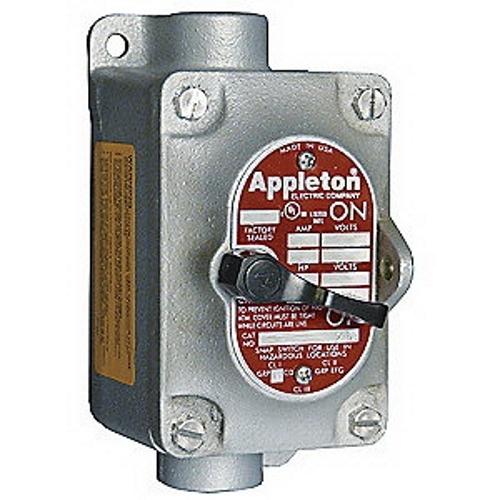

Appleton EDSC175F1 Explosionproof Tumbler Switch
Part Number # EDSC175F1
SKU # 2237787
$274.29 / Each
Appleton EDSC175F1 Key Features
Brand: Appleton
Part Number # EDSC175F1
SKU #2237787
Actuator: Lever
Amperage Rating: 20, 20 A
Dimensions: 5.38 in H x 3 in W x 4.69 in D
Finish: Triple Coated
NEMA Rating: NEMA 7CD/9EFG
Number of Poles: 1
Series: EDSC
Type: 1-Gang Feed-Through
Voltage Rating: 120 to 277, 120 to 277 VAC
Connection type: Thread, Threaded
Country of origin: MX
Material: Malleable Iron
Mounting type: Surface
Manufacturer Name: Emerson Electric
UNSPSC: 39121565
UPC: 00781381325530
$274.29 / Each
- Appleton UNILETS Explosionproof Tumbler Switch, 1-Gang Feed-Through, Series: EDSC, 120 to 277 VAC, 20 A, 1 Pole, Lever Actuator, Thread Connection, NEMA 7CD/9EFG NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 5.38 in H x 3 in W x 4.69 in D Dimensions
EDSC175F1 Application
Used in classified areas where ignitable vapors, gases or highly combustible dusts are present and installed in chemical plants, petrochemical plants, refineries and other process industriesEDSC175F1 Includes
Internal Ground ScrewEDSC175F1 Item Features
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Factory sealed switches are designed to a UL standard so that any arcing devices are contained within an explosionproof labyrinth switch
- Tumbler switch devices are approved for installation without additional external sealing fittings
- 20 A 4-way and all 30 A models utilize a switch enclosed in separate sealing chamber
- Smooth double face, accurately ground surfaces on sealing chamber flange mate with cover and body to provide positive flametight construction
- Sealing chamber has prewired factory sealed pigtail leads to switch
- Threaded stainless steel operating handle provides positive corrosion resistant operation
- Corrosion resistant, strong stainless steel hex head cap screws attach cover or body or sealing chamber assembly for approved flame-tight construction
- Pad lockable in the on or off position
EDSC175F1 Standards
UL 894, UL 1203, E10523, E81751 UL Listed|Class I, Group B, As Well As Class I, Groups C and D, Class II, Groups E, F, G, and Class IIISKU #2237787Part Number #EDSC175F1UNSPSC39121565UPC00781381325530
