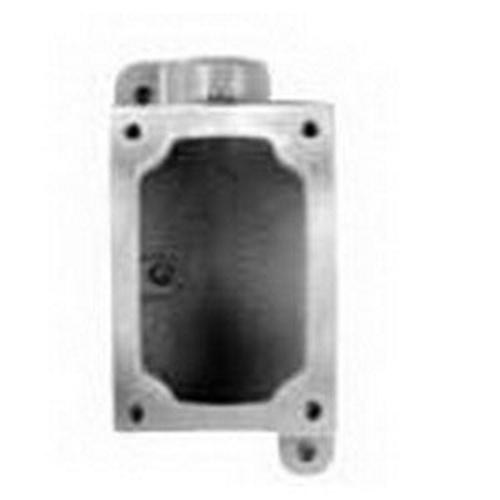

Appleton EDSC271SA Electrical Box
Part Number # EDSC271SA
SKU # 3294
$61.04 / Each
Typical price:$67.93 / Each
Appleton EDSC271SA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EDSC271SA |
| SKU #: | 3294 |
| Dimensions: | 6.81 in H x 3.72 in W x 3.05 in D |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 3R/7B/9EFG |
| Series: | EDSC |
| Type: | 1-Gang Feed-Through |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381698184 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$61.04 / Each
Typical price:$67.93 / Each
Quantity:
Appleton EDSC271SA Electrical Box
Brand: Appleton
Part Number: EDSC271SA
Appleton Electrical Box, 1-Gang Feed-Through, Series: EDSC, NEMA 3R/7B/9EFG, Aluminum, Powder Coated, 6.81 in H x 3.72 in W x 3.05 in D Dimensions
Additional Description: APLE-EDSC271SA 3/4 SINGLE GANG EDSC UNILET
Catalog Description: Contender Division 2 Contender 1-Gang Feed Thru Mounting Body, Number Of Outlet: 2, Material: Aluminum, Size: 3/4 IN, Cable Entry: (2) 3/4 IN Hub, Mounting: Lugs, Width: 3.5 IN, Height: 6.81 IN, Depth: 3.06 IN, Standard: UL 508, 698, 12
EDSC271SA Application
Contender Series Tumbler Switches, CPS 20 AMP Factory Sealed Receptacles And CPP Plugs, U-Line 20 AMP Receptacles and Division 2 Contender SeriesEDSC271SA Includes
Ground ScrewEDSC271SA Item Features
- For U-Line Contender 20 A receptacles, tumbler switches, EDS/EFS series 4C control stations
- Finish is epoxy powder coat for enhanced corrosion resistance
- Large backbox for ample wiring room
- Ground screw installed in bodies for ground continuity
- Corrosion resistant stainless steel hex head captive screws hold covers to body
- Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance
- Accurately tapped, tapered hubs for tight rigid joints and ground continuity
EDSC271SA Standards
UL 508, 943, 1203, E10449, E81751|Class I/Class II/Class III, Division 1 and 2, Groups C/D/E/F/GSKU #3294Part Number #EDSC271SAUNSPSC39131708UPC00781381698184
