EDSC347SA
Appleton EDSC347SA
Part Number # EDSC347SA
SKU # 2466455
Appleton EDSC347SA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EDSC347SA |
| SKU #: | 2466455 |
| Dimensions: | 9.19 in H x 3.72 in W x 3.06 in D |
| Series: | EDS |
| Suitable For Use With: | Contender Series Factory Sealed Control Stations and Pilot Light |
| Type: | 2-Gang Feed-Through |
| UNSPSC: | 39121565 |
| UPC: | 00781381781732 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EDSC347SA
Brand: Appleton
Part Number: EDSC347SA
Appleton® Contender™ Mounting Body, 2-Gang Feed-Through, Series: EDS, For Use With: Contender® Series Factory Sealed Control Stations and Pilot Light, NEMA 3RX, Aluminum, Epoxy Powder Coated, 9.19 in H x 3.72 in W x 3.06 in D
Additional Description: APLE-EDSC347SA 3-DEVICE UNILET W/1 HUB
Catalog Description: Control Station Mounting Body, Type Feed Through, Number of Gangs 2, Construction Tandem, Number of Hubs 2, Hub Size 1 Inch, Material Zinc Electroplated Chromate Epoxy Powder Coated Copper Free Aluminum, Enclosure Class I Div 1 Group C D, Class I Div 2 Group B, Class I Zone 1 Group IIB, Class I Zone 2 Group IIB, Class II Group F G, Class III, NEMA 3RX, Size 3.72 Inch W x 3.06 Inch D x 12.31 Inch H, Used On Contender Series Factory Sealed Receptacles and CPP Plugs, Approval UL
EDSC347SA Application
For use in classified areas where ignitable vapors, gases or highly combustible dusts are present, locations where corrosive elements are present, chemical and petrochemical plants, refineries and other process industriesEDSC347SA Includes
Internal Ground ScrewEDSC347SA Standards
Class I Division 1 Groups C D, Class I Division 2 Groups B, Class I zone 1 Groups IIB, Class I zone 2 Groups IIB, Class II Groups F G, Class III|UL ListedSKU #2466455Part Number #EDSC347SAUNSPSC39121565UPC00781381781732

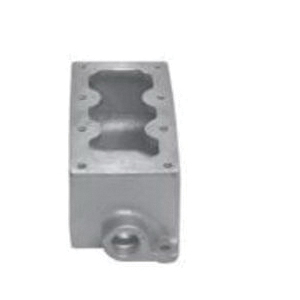

Image provided may only be a representation of final product and may include optional equipment
