Part Number # EDSC371SA
SKU # 2320191
EDSC371SA

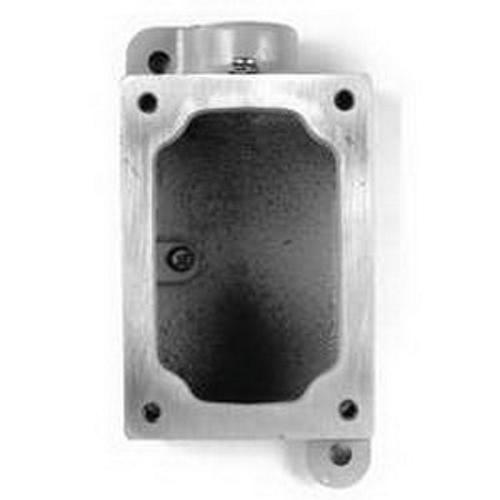

Appleton EDSC371SA Cast Device Mounting Box
Part Number # EDSC371SA
SKU # 2320191
Appleton EDSC371SA Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EDSC371SA |
| SKU #: | 2320191 |
| Dimensions: | 7.03 in H x 3.5 in W x 3.06 in D |
| Enclosure Type: | NEMA 3/7C/7D/9E/9F/9G, NEMA 3/7CD/9EFG |
| Finish: | Epoxy Powder Coated |
| Hub Size: | 1, 1 in |
| Number of Gangs: | 1 |
| Number of Outlets: | 2 |
| Type: | Feed-Through |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00781381698191 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EDSC371SA Cast Device Mounting Box
Brand: Appleton
Part Number: EDSC371SA
Appleton Cast Device Mounting Box, Feed-Through, 2 Outlets, 1 Gangs, 1 in Hub, NEMA 3/7C/7D/9E/9F/9G Enclosure, Aluminum, Epoxy Powder Coated, 7.03 in H x 3.5 in W x 3.06 in D Dimensions
Additional Description: APLE-EDSC371SA 1 SINGLE GANG EDSC UNILET
Catalog Description: EDSC Feed-Thru 1-Gang Cast Device Mounting Box, Number Of Outlet: 2, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 1 IN, Cable Entry: (2) 1 IN Hub, Knockouts: No, Height: 6.81 IN, Width: 3-1/2 IN, For U-Line Contender 20 Amp Receptacles
EDSC371SA Application
For use with contender CPS 20 A factory sealed receptacles and CPP plugsEDSC371SA Item Features
- For Contender CPS 20 amp factory sealed receptacles and CPP plugs
EDSC371SA Standards
NEC|CEC Approved|UL 1010|UL 1203|UL 894 File No. E10784|CSA C22.2 No. 25|CSA C22.2 No. 30|CSA C22.2 No. 159|CSA 038644SKU #2320191Part Number #EDSC371SAUNSPSC39131708UPC00781381698191
Image provided may only be a representation of final product and may include optional equipment
