Part Number # EF100
SKU # 2224011
Image provided may only be a representation of
final product and may include optional equipment
EF100

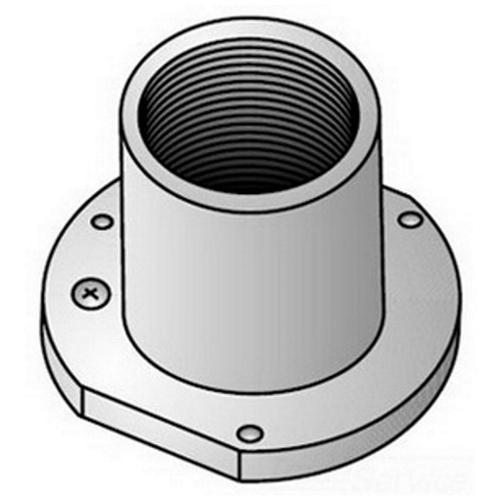

Appleton EF100 Electroform Insert
Part Number # EF100
SKU # 2224011
Appleton EF100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EF100 |
| SKU #: | 2224011 |
| Dimensions: | 2-1/2 in Dia x 1-5/8 in H |
| Finish: | Zinc Plated |
| Size: | 1, 1 in |
| Suitable For Use With: | Threaded Rigid Conduit/IMC |
| Type: | Type EF Straight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00783126120295 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EF100 Electroform Insert
Brand: Appleton
Part Number: EF100
O-Z/Gedney Electroform Insert, Type EF Straight, 1 in, For Use With: Threaded Rigid Conduit/IMC, Malleable Iron, Zinc Plated, 2-1/2 in Dia x 1-5/8 in H
Additional Description: APLE-EF100 1 IN STR ELECTROFORM INSERT
Catalog Description: OZ-Gedney Type EF Concrete Slab Electroform Straight Conduit Insert, Size: 1 IN, Malleable Iron, Finish: Zinc Plated, Dimensions: 2-1/2 IN Base Diameter X 3-5/16 IN Base Across Flats X 1-5/8 IN Height, Third Party Certification: UL File Number E-11
EF100 Application
For concrete slabs 4 in thickness and up, conduit installed in poured concrete slabs, nail, screw or tack weld insert to concrete deck formEF100 Item Features
- Provide an interface between conduit inside and outside the concrete slab
EF100 Standards
ARRA Compliant|ANSI Specified|UL 514B|UL File No. E11853|CSA C22.2 File No. 18|CSA File No. 9795|Federal Specification W-F-408ESKU #2224011Part Number #EF100UNSPSC39121311UPC00783126120295
