EFDB175102
Appleton EFDB175102
Part Number # EFDB175102
SKU # 2469860
Appleton EFDB175102 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFDB175102 |
| SKU #: | 2469860 |
| Contact Rating: | 10 A at 600 V AC |
| Dimensions: | 3/4 in |
| Finish: | Triple Coated |
| Legend: | Auto/Hand/Off |
| NEMA Rating: | NEMA 3/7B/7C/7D/9E/9F/9G |
| Series: | EFDB |
| Type: | 1-Gang 2-Circuit |
| Connection type: | Screw Terminal |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381700870 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFDB175102
Brand: Appleton
Part Number: EFDB175102
Appleton® Contender™ Selector Switch, 1-Gang 2-Circuit, Series: EFDB, Maintained Contact Mode, 10 A at 600 VAC Contact, Legend: Hand/Off/Auto, Terminal Screw Connection, NEMA 3/7B/7C/7D/9E/9F/9G NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 3/4 in Dimensions
Additional Description: APLE-EFDB175102 3POS-2CKT SELECTOR SWITCH
Catalog Description: Appleton Contender EFDB Series 1-Gang 2 Circuit Selector Switch, Number Of Steps: 3, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, Operation: Maintained, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1 And 2, Groups B , C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
EFDB175102 Application
For used to conjunction with contactors or magnetic starters for remote control of motorsEFDB175102 Includes
Internal Ground ScrewEFDB175102 Item Features
- Eliminate need for adding sealing fittings and compound at each conduit entrance
- Selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Assures positive contact and long, trouble free operation
- Provide circuit control and/or selection
- EFD/EFDB and EDS factory sealed control stations confine arcing of device within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment
EFDB175102 Standards
UL 508, 698, 1203, E10449, E81751 Listed, Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III CertifiedEFDB175102 Warranty
1 YearSKU #2469860Part Number #EFDB175102UNSPSC39121565UPC00781381700870

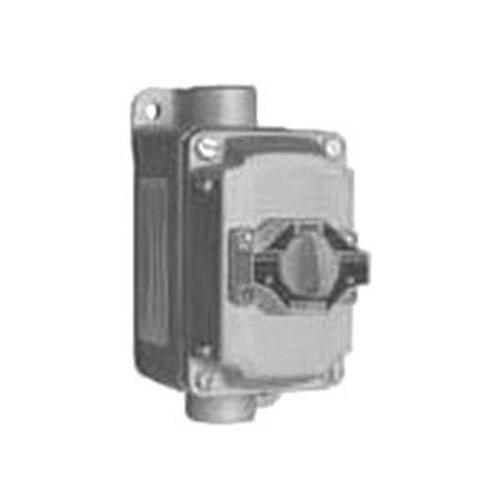

Image provided may only be a representation of final product and may include optional equipment
