EFDB175345
Appleton EFDB175345
Part Number # EFDB175345
SKU # 2468331
Appleton EFDB175345 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFDB175345 |
| SKU #: | 2468331 |
| Contact Configuration: | 8NO-4NC |
| Finish: | Triple Coated |
| Legend: | Auto/Hand/Off |
| NEMA Rating: | NEMA 3/7CD/9EFG |
| Series: | EFDB |
| Type: | Dead End Explosionproof |
| UNSPSC: | 39121565 |
| UPC: | 00781381700948 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFDB175345
Brand: Appleton
Part Number: EFDB175345
Appleton® Selector Switch Control Station, Dead End Explosionproof, Series: EFDB, 600 VAC, 10 A, 1 Operators, 8NO-4NC Contact Configuration, Maintained Contact Mode, Knob Operator, Legend: Hand/Off/Auto, Thread Connection, NEMA 3/7CD/9EFG NEMA Rating, Malleable Iron, Triple Coated
Additional Description: APLE-EFDB175345 3POS-4CKT SELECTOR SWITCH STA.
Catalog Description: Selector Switch Control Station, Type Dead End, Constructional Feature Explosionproof, Dust-Ignitionproof, Voltage Rating 600 VAC, Current Rating 10 Ampere, Operation Type Maintained, Contact Configuration 8NO-4NC, Number of Circuits 4, Number of Positions 3, Operator Type Knob, Box Type Single Gang, Hub Size 3/4 Inch, Enclosure Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG, Approval UL 508/698/1203, Application Hazardous Location, Legend Hand-Off-Auto
EFDB175345 Application
For hazardous locationsEFDB175345 Item Features
- Eliminate need for adding sealing fittings and compound at each conduit entrance
- Dozens of possible combinations of push buttons, selector switches and pilot lights
- Smooth, rounded integral bushing in each EFD/EFDB hub protects conductor insulation
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Assures positive contact and long, trouble free operation
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
- Pushbutton models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered
- Factory sealed eliminates need for adding sealing fittings and compound at each conduit entrance
- Switch is enclosed in separate sealing chamber
- Sealing chamber has smooth, double flanges that mate both to cover and mounting enclosure to provide flame-tight joints
EFDB175345 Standards
Class I, Div 1, 2, Groups B, C, D, Class II, Div 1, 2, Groups E, F, G, Class III|UL 508/698/1203SKU #2468331Part Number #EFDB175345UNSPSC39121565UPC00781381700948

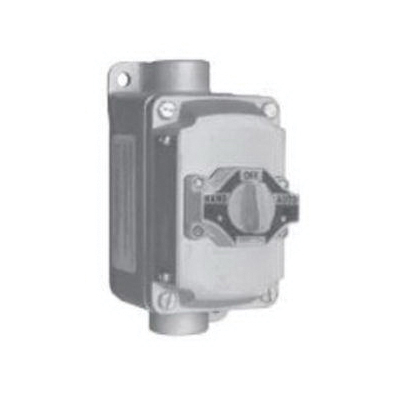

Image provided may only be a representation of final product and may include optional equipment
