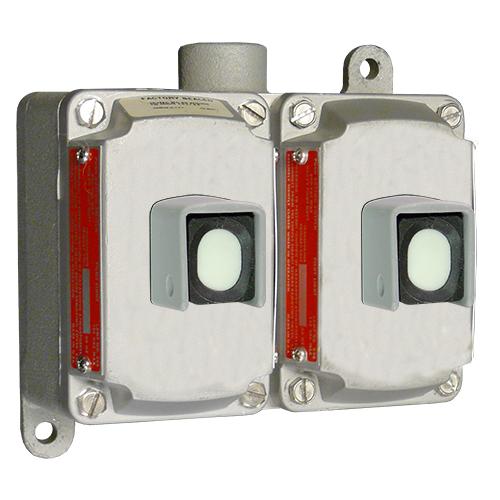

Appleton EFDC210U2 Pushbutton Control Station
Part Number # EFDC210U2
SKU # 2276143
Appleton EFDC210U2 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFDC210U2 |
| SKU #: | 2276143 |
| Amperage Rating: | 10, 10 A |
| Contact Configuration: | 4NO-4NC |
| Dimensions: | 6.31 in H x 6.19 in W x 5 in D |
| Finish: | Epoxy Powder Coated |
| Legend: | START/STOP, STOP/START |
| NEMA Rating: | NEMA 3/7CD/9EFG |
| Operator Type: | Front Button |
| Series: | EFD |
| Type: | Feed-Through Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381132749 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFDC210U2 Pushbutton Control Station
Brand: Appleton
Part Number: EFDC210U2
Appleton Pushbutton Control Station, Feed-Through Explosionproof, Series: EFD, 600 VAC, 10 A, 4NO-4NC, Momentary Contact Mode, Front Button Operator, STOP/START Legend, NEMA 3/7CD/9EFG, Malleable Iron, Epoxy Powder Coated, 6.31 in H x 6.19 in W x 5 in D
Additional Description: APLE-EFDC210U2 4PB 2-GANG 1 FEED-THRU
Catalog Description: Pushbutton Control Station, Type Feed Through, Constructional Feature Explosionproof, Dust-Ignitionproof, Voltage Rating 600 VAC, Current Rating 10 Ampere, Legend Start/Stop, Number of Circuits 4, Contact Configuration 4NO-4NC, Universal, Operator Type Front Operated Button, Box Type Double Gang, Hub Size 1 Inch, Enclosure Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG, Approval UL 508/698/1203, Overall Size 6.19 Inch W x 5 Inch D x 6.31 Inch H, Application Hazardous Location, Operation Type Momentary
EFDC210U2 Application
For hazardous location, used in classified areas where flammable vapors, gases or highly combustible dusts are present, installation in chemical and petrochemical plants, refineries and other process industriesEFDC210U2 Includes
Internal Ground ScrewEFDC210U2 Item Features
- Eliminate need for adding sealing fittings and compound at each conduit entrance
- Heavy duty pushbutton
- Dozens of possible combinations of push buttons, pilot lights and selector switches
- Smooth, rounded integral bushing in each EFD/EFDB hub protects conductor insulation
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements. Assures positive contact and long, trouble free operation
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
- Pushbutton models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered
- Corrosion resistant captive stainless steel hex head cap screws hold EFKB covers to body
- All EFD/EFDB momentary push buttons are supplied with lockout type guards as standard, hole in guard will accept locks with up to 1/4 in hasp, permits locking of pushbutton to prevent unauthorized operation
- Clearly marked terminals with brass screws assure quick, easy wiring
EFDC210U2 Standards
UL 508/698/1203|UL File No. E10449|UL File No. E81751|Class I, Div 1, Groups B, C, D Class I, Div 2, Groups B, C, D Class II, Div 1 and 2, Groups E, F, G Class IIISKU #2276143Part Number #EFDC210U2UNSPSC39121565UPC00781381132749
Image provided may only be a representation of final product and may include optional equipment
