Part Number # EFDC2473
SKU # 2126167
EFDC2473
Appleton EFDC2473 Pushbutton/Pilot Light
Part Number # EFDC2473
SKU # 2126167
Appleton EFDC2473 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFDC2473 |
| SKU #: | 2126167 |
| Amperage Rating: | 10, 10 A |
| Contact Configuration: | 1NC-1NO, 1NO-1NC, 1NO/1NC |
| Dimensions: | 6.81 in H x 3.72 in W x 3.06 in D |
| Finish: | Triple Coated |
| NEMA Rating: | NEMA 3/7CD/9EFG |
| Operator Type: | Front Button |
| Series: | EFDC |
| Type: | 1-Gang Combination Feed-Through |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381694964 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFDC2473 Pushbutton/Pilot Light
Brand: Appleton
Part Number: EFDC2473
Appleton Contender Pushbutton/Pilot Light, 1-Gang Combination Feed-Through, Series: EFDC, 600 VAC, 10 A, 1NC-1NO Contact Configuration, Momentary Contact Mode, Front Button Operator, NEMA 3/7CD/9EFG NEMA Rating, Malleable Iron, Triple Coated, 6.81 in H x 3.72 in W x 3.06 in D Dimensions
Additional Description: APLE-EFDC2473 COMB. P.L. PB 1-G 3/4 STA-FS
Catalog Description: Pushbutton and Pilot Light Control Station, Type Feed Through, Constructional Feature Explosionproof, Dust-Ignitionproof, Voltage Rating 600 VAC, Current Rating 10 Ampere, Number of Circuits 1, Contact Configuration 1NO-1NC, Universal, Number of Pushbuttons 1, Number of Pilot Lights 1, Operator Type Button, Pilot Light Type 120 VAC 6 W 6S6 Lamp, Box Type Single Gang, Hub Size 3/4 Inch, Enclosure Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Enclosure Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG, Approval UL 508/698/1203, Overall Size 3.72 Inch W x 3.06 Inch D x 6.81 Inch H, Includes Internal Ground Screw, Application Hazardous Location
EFDC2473 Application
For installation in chemical and petrochemical plants, refineries and other process industries and hazardous locationsEFDC2473 Includes
Internal Ground ScrewEFDC2473 Item Features
- Corrosion-resistant captive stainless steel hex head bolts hold cover to body
- Factory sealed enclosure confines any arcing, with no need to install external sealing fittings at each conduit entry
- Dozens of possible combinations of push buttons, pilot lights and selector switches
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Pushbutton and selector switch contacts are silver cadmium oxide and are sealed in lower phenolic chamber, isolated from corrosive elements, to ensure positive contact and long, trouble free operation
- Enclosed stainless steel helper spring prevents accidental operation of pushbutton in severe vibration installations
- All front operated push buttons are supplied standard with lockable guard to prevent unauthorized operation
- Push buttons and selector switches are used in conjunction with contactors and magnetic starters to provide circuit selection and control for motors
- Pilot lights provide visual confirmation that an electrical function is being performed
- Large back box for ample wiring room
- All momentary pushbuttons are supplied with lockout type guards as standard, hole in guard will accept locks with up to 1/4 in hasp, permits locking of pushbutton to prevent unauthorized operation
- Clearly marked terminals with brass screws and spade terminals assure quick, easy wiring
EFDC2473 Standards
Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III|UL 508/698/1203 File No. E10449/E81751SKU #2126167Part Number #EFDC2473UNSPSC39121565UPC00781381694964

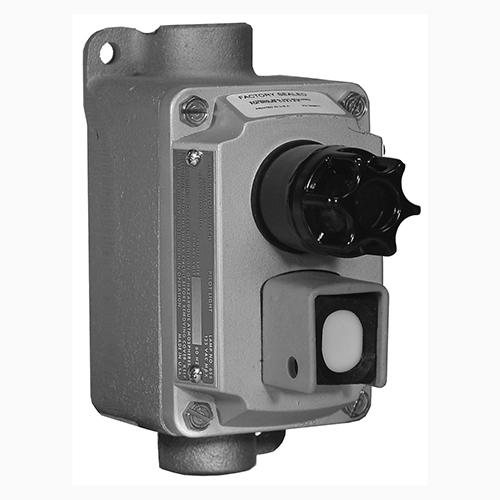

Image provided may only be a representation of final product and may include optional equipment
