EFDCB175PC120
Appleton EFDCB175PC120
Part Number # EFDCB175PC120
SKU # 2469812
Appleton EFDCB175PC120 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFDCB175PC120 |
| SKU #: | 2469812 |
| Amperage Rating: | 8.3 A |
| Dimensions: | 6.13 in H x 3 in W x 4.81 in D |
| Series: | EFDB |
| Type: | 1-Gang Feed-Through |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381717762 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFDCB175PC120
Brand: Appleton
Part Number: EFDCB175PC120
Appleton® Factory Sealed Photocontrol, 1-Gang Feed-Through, Series: EFDB, 120 VAC, 8.3 A, Malleable Iron, 6.13 in H x 3 in W x 4.81 in D Dimensions, Appleton® Factory Sealed Photocontrol ADDITIONAL DETAILS
Additional Description: APLE-EFDCB175PC120 3/4 PHOTO CONTROL STATION
Catalog Description: EFDB Series 1-Gang Feed Through Photocontrol, Supply Voltage: 120 V, Size: 3/4 IN Hub, Operating Temperature: -30 To 140 DEG F, Turn On/Turn Off Ratio: 1:3, Current Rating: 8.3 AMP, VA Rating: 1000 VA, Standard: Class I, Groups B, C, D, Cl
EFDCB175PC120 Application
For threaded metal conduitEFDCB175PC120 Item Features
- Finish is an epoxy powder coat for enhanced corrosion resistance
- Corrosion resistant stainless steel hex-head captive screws hold cover to body
- Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- Smooth, rounded integral bushing in each hub protects conductor insulation
EFDCB175PC120 Standards
CSA Certified, Class I, Groups B, C, D Class II, Groups, E, F, G Class IISKU #2469812Part Number #EFDCB175PC120UNSPSC39121565UPC00781381717762

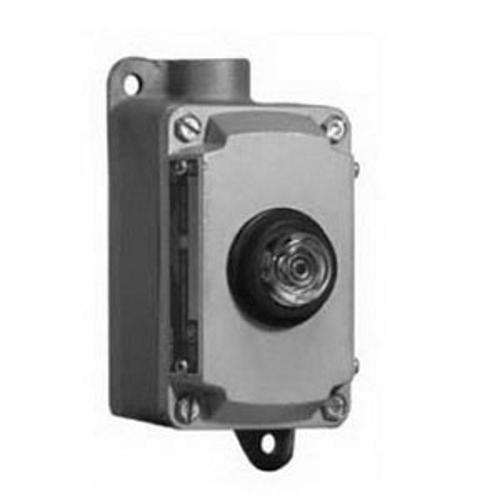

Image provided may only be a representation of final product and may include optional equipment
