Part Number # EFDL75Q
SKU # 2447792
EFDL75Q
Appleton EFDL75Q
Part Number # EFDL75Q
SKU # 2447792
Appleton EFDL75Q Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFDL75Q |
| SKU #: | 2447792 |
| Finish: | Epoxy Powder Coated |
| NEMA Rating: | NEMA 7CD/9EFG |
| Series: | EFDL |
| Suitable For Use With: | EFD/EFDB and EDS Factory Sealed Control Stations |
| Type: | 1-Gang Dead End |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00078138110651 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFDL75Q
Brand: Appleton
Part Number: EFDL75Q
Appleton® Control Station Mounting Body, 1-Gang Dead End, Series: EFDL, For Use With: EFD/EFDB and EDS Factory Sealed Control Stations, NEMA 7CD/9EFG, Malleable Iron, Epoxy Powder Coated
Additional Description: APLE-EFDL75Q 3 DIVICE UNILET BODY
Catalog Description: Control Station Mounting Body, Type Dead End, Number of Gangs 1, Construction Three Device, Number of Hubs 2, Hub Size 3/4 Inch, Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron Body With copper-Free Aluminum Cover, Enclosure Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7CD/9EFG, Size 3 Inch W x 6.13 Inch H, Mounting Lug, Used On EFD Series Control Stations, Approval UL 508/698/1203
EFDL75Q Includes
Internal Ground ScrewEFDL75Q Standards
UL 508/698/1203|Class I, Division 1 and 2, Groups C, D Class II, Division 1 and 2, Groups E, F, G Class IIISKU #2447792Part Number #EFDL75QUNSPSC39131708UPC00078138110651

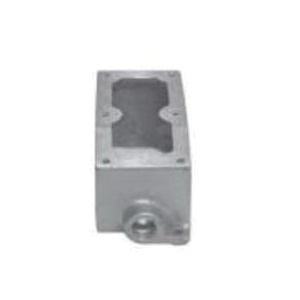

Image provided may only be a representation of final product and may include optional equipment
