EFDT75J2U2
Appleton EFDT75J2U2
Part Number # EFDT75J2U2
SKU # 2469882
Appleton EFDT75J2U2 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFDT75J2U2 |
| SKU #: | 2469882 |
| Actuator: | Front Operated Pushbutton |
| Contact Configuration: | 2NO-2NC |
| Contact Rating: | 10 A at 600 V AC |
| Dimensions: | 3 in W x 5.5 in D x 11.06 in H |
| Finish: | Electro-Zinc Plated/Chromate/Epoxy Powder Coated |
| Indicator Type: | 6S6 Incandescent |
| Legend: | STOP/START |
| NEMA Rating: | NEMA 3/7CD/9EFG |
| Number of Operators: | 2 |
| Series: | EFD |
| Type: | 2-Gang 2-Circuit Dead-End |
| Connection type: | 3/4 in Hub |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381133524 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFDT75J2U2
Brand: Appleton
Part Number: EFDT75J2U2

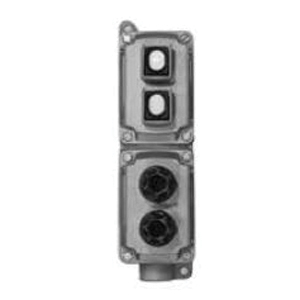

Appleton® Control Station, 2-Gang 2-Circuit Dead-End, Series: EFD, 2 Operators, 2NO/2NC Universal, 10 A at 600 VAC Contact, START/STOP Legend, Front Operated Pushbutton, 3/4 in Hub, 6S6 Incandescent Indicator, NEMA 3/7CD/9EFG, Malleable Iron, Electro-Zinc Plated/Chromate/Epoxy Powder Coated, 3 in W x 5.5 in D x 11.06 in H
Additional Description: APLE-EFDT75J2U2 2PIL 2PB TANDEM 3/4 DEAD-END
Catalog Description: Pushbutton and Pilot Light Control Station, Type Dead End, Constructional Feature Explosionproof, Dust-Ignitionproof, Voltage Rating 600 VAC, Current Rating 10 Ampere, Number of Circuits 2, Contact Configuration 2NO-2NC, Universal, Number of Pushbuttons 2, Number of Pilot Lights 2, Operator Type Front Operated Button, Pilot Light Type 120 VAC 6 W 6S6 Lamp, Legend Start/Stop, Box Type Double Gang Tandem, Hub Size 3/4 Inch, Enclosure Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG, Approval UL 508/698/1203, Overall Size 3 Inch W x 5.5 Inch D x 11.06 Inch H, Cover Material Aluminum, Includes Internal Ground Screw, Application Hazardous Location
EFDT75J2U2 Application
For chemical and petrochemical plants, refineries, other process industries and hazardous locationEFDT75J2U2 Includes
Internal Ground ScrewEFDT75J2U2 Item Features
- Constructional feature explosionproof and dust-ignitionproof
- Factory sealed eliminates the need for adding sealing fittings and compound at each conduit entrance
- The devices are enclosed in separate sealing chamber that has smooth, double flanges that mate both to the cover and mounting enclosure to provide flanges
- EFD/EFDB factory sealed pilot lights are supplied with red jewel/guard assembly and 120 VAC/VDC, 50/60 Hz, 6 W, 6S6 lamp
- EFD/EFDB factory sealed selector switches furnished with nylon cam-operated, heavy duty pushbuttons for either 2-position or 3-position maintained contact operation
- They offer high thermal and arc resistance, high dielectric strength
- Heavy duty pushbuttons, 10 A, 600 VAC rated
- EFD/EFDB momentary pushbuttons are supplied with lockout type guards as standard
- A hole in the guard will accept locks with up to 1/4 in hasp
- Permits locking of pushbutton to prevent unauthorized operation
- EFD/EFDB backbox supplied with internal ground screw
- Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
- Smooth rounded integral bushing in each hub protects conductor insulation
- Corrosion resistant captive stainless steel hex head cap screws hold covers to body
- Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintece free operation
- Pushbutton and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements
- Assures positive contact and long, trouble-free operation
- Clearly marked terminals with brass screws assure quick, easy wiring
- Pigtail leads from pushbuttons are factory sealed in sealing well
- (2) 120 VAC 6 W 6S6 pilot light
EFDT75J2U2 Standards
cULus E10449/E81751|NEC Class I Division 1 and 2 Group B C D/Class II Division 1 and 2 Group E F G/Class III|UL 508/698/1203EFDT75J2U2 Warranty
1 Year LimitedSKU #2469882Part Number #EFDT75J2U2UNSPSC39121565UPC00781381133524
