EFDT75NLQ
Appleton EFDT75NLQ
Part Number # EFDT75NLQ
SKU # 2469915
Appleton EFDT75NLQ Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFDT75NLQ |
| SKU #: | 2469915 |
| Dimensions: | 11.06 in H x 3 in W x 4.34 in D |
| Finish: | Triple Coated |
| Series: | EFDT |
| Specifications: | 2-Gang, (2) 3/4 in Hub |
| Suitable For Use With: | CPS 20 A Receptacles, EFD/EDS Series Factory Sealed Control Stations, Tumbler Switch |
| Type: | Dead End Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381628396 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFDT75NLQ
Brand: Appleton
Part Number: EFDT75NLQ
Appleton® Mounting Box, Dead End Explosionproof, Series: EFDT, For Use With: CPS 20 A Receptacles, EFD/EDS Series Factory Sealed Control Stations, Tumbler Switch, 2-Gang, (2) 3/4 in Hub, Malleable Iron, Triple Coated, 11.06 in H x 3 in W x 4.34 in D
Additional Description: APLE-EFDT75NLQ EFD MTG BODIES ON SPEC DECK
Catalog Description: Control Station Tumbler Switch Mounting Body, Type Dead End, Number of Gangs 2, Construction Tandem, Number of Hubs 2, Hub Size 3/4 Inch, Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Enclosure Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/7BCD/9FG, Size 3 Inch W x 4.34 Inch D x 11.06 Inch H, Mounting Lug, Used On EFD/EDS Series Factory Sealed Control Station, Approval UL 943/1203, Application Chemical Plants, Petrochemical Plants, Refinery, Handle Material Nylon 6/6, Constructional Feature Explosionproof, Dust-Ignitionproof
EFDT75NLQ Application
Chemical and Petrochemical Plants and Refinery ApplicationsEFDT75NLQ Standards
UL 943/1203|Class I Div 1 and 2 Groups B C D, Class II Div 1 and 2 Groups E F G, Class IIISKU #2469915Part Number #EFDT75NLQUNSPSC39121565UPC00781381628396

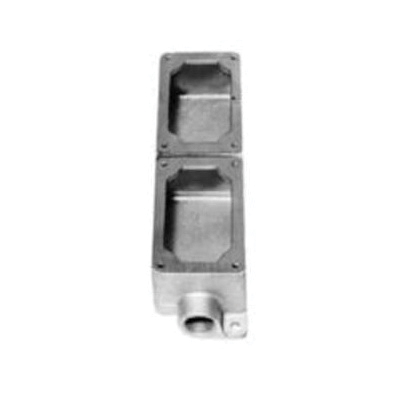

Image provided may only be a representation of final product and may include optional equipment
