Part Number # EFKB102SLC
SKU # 2426929
EFKB102SLC
Appleton EFKB102SLC Cover Assembly
Part Number # EFKB102SLC
SKU # 2426929
Appleton EFKB102SLC Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFKB102SLC |
| SKU #: | 2426929 |
| Finish: | Electro-Zinc Plated/Chromate/Epoxy Powder Coated |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122217 |
| UPC: | 00781381903271 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFKB102SLC Cover Assembly
Brand: Appleton
Part Number: EFKB102SLC
Appleton® Cover Assembly, Malleable Iron, Electro-Zinc Plated/Chromate/Epoxy Powder Coated
Additional Description: APLE-EFKB102SLC SEL SWITCH COVER ASSY
Catalog Description: Selector Switch Control Station Cover Assembly, Constructional Feature Explosionproof, Dust-Ignitionproof, Operation Type Momentary/Spring Return/ Maintained, Contact Configuration 3NO-1NC, Number of Selector Switches 1, Number of Circuits 2, Number of Positions 3, Operator Type Front Operated Knob, Material Zinc Electroplated Chromate Epoxy Power Coated Malleable Iron, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG, Used On EFD Series Factory Sealed Selector Switch, Approval UL 508/698/1203, Application Selector Switch are Used in Conjunction with Contactor/Magnetic Starter for Remote Control of Motor, For Installation in Chemical and Petrochemical Plant, Refinery and other Process Industries
EFKB102SLC Application
For Use with EFK Series 3NO-1NC 2-Circuit Selector Switch Control StationEFKB102SLC Item Features
- The devices are enclosed in separate sealing chamber that has smooth, double flanges that mate both to the cover and mounting enclosure to provide flame-tight joints
- Spring return from left selector switch
EFKB102SLC Standards
cULus E10449/E81751|NEC/CEC Class I Division 1 Group C D, Class I Division 2 Group B C D, Class II Division 1 and 2 Group E F G, Class III|UL 508/698/1203SKU #2426929Part Number #EFKB102SLCUNSPSC39122217UPC00781381903271

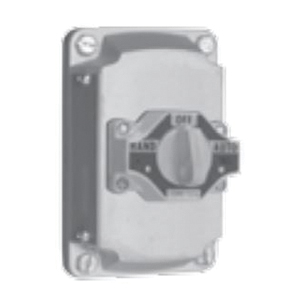

Image provided may only be a representation of final product and may include optional equipment
