EFKB345
Appleton EFKB345
Part Number # EFKB345
SKU # 2468336
Appleton EFKB345 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFKB345 |
| SKU #: | 2468336 |
| Enclosure Type: | NEMA 3/7/9 |
| Legend: | Auto/Hand/Off |
| Series: | EFKB |
| Type: | 4-Circuit Factory Sealed |
| UNSPSC: | 39122217 |
| UPC: | 00781381634526 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFKB345
Brand: Appleton
Part Number: EFKB345

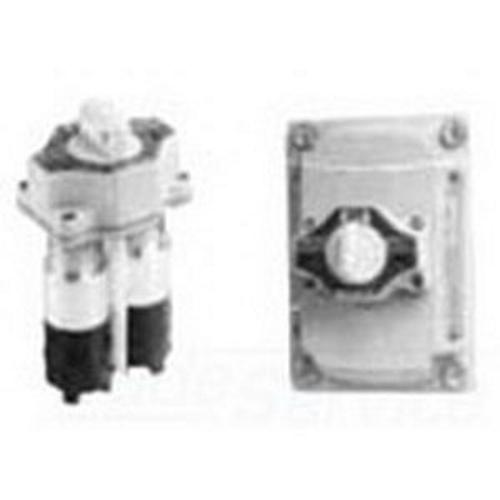

Appleton® Selector Switch Assembly, 4-Circuit Factory Sealed, Series: EFKB, 600 VAC, 10 A, 2NO-2NC Contact Configuration, Maintained Contact Mode, Legend: Hand/Off/Auto, NEMA 3/7/9 Enclosure, Surface Mounting, Aluminum, Natural
Additional Description: APLE-EFKB345 SEL SWITCH COVER ASSY
Catalog Description: EFKB Series 4 Circuit Selector Switch Assembly, Number Of Steps: 3, Contact Configuration: 2 NO/2 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 1/2 IN NPSM, Operation: Maintained, Materi
EFKB345 Application
Used in conjunction with contactors or magnetic starters for remote control of motorsEFKB345 Item Features
- Factory sealed selector switches furnished with nylon cam operated, heavy duty push buttons for either 2-position or 3-position maintained contact operation
- High thermal and arc resistance, high dielectric strength
- Copperfree (4/10 of 1% maximum) aluminum operator mechanism, nylon cam and sealed phenolic contact block
EFKB345 Standards
UL 508/698/1203|UL File No. E10449|UL File No. E81751|Class I, Div 1 and 2, Groups C, D Class II, Div 1 and 2, Groups E, F, G and Class IISKU #2468336Part Number #EFKB345UNSPSC39122217UPC00781381634526
Image provided may only be a representation of final product and may include optional equipment
