Part Number # EFS250A2023GFI
SKU # 2243561
EFS250A2023GFI
Appleton EFS250A2023GFI Pin and Sleeve Receptacle
Part Number # EFS250A2023GFI
SKU # 2243561
Appleton EFS250A2023GFI Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFS250A2023GFI |
| SKU #: | 2243561 |
| Amperage Rating: | 20, 20 A |
| NEMA Rating: | NEMA 3/3R/7BCD/9EFG |
| Type: | Dead-End |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381671293 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

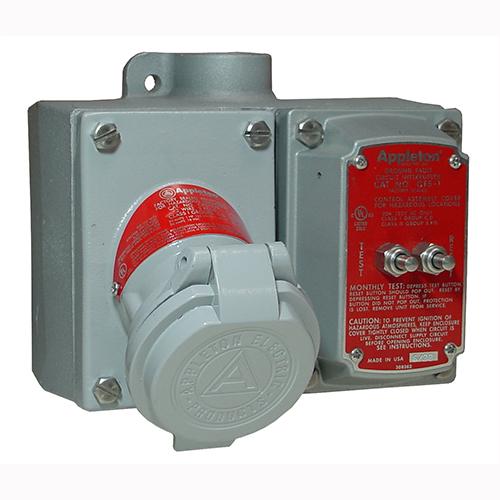

Appleton EFS250A2023GFI Pin and Sleeve Receptacle
Brand: Appleton
Part Number: EFS250A2023GFI
Appleton U-Line Pin and Sleeve Receptacle, Dead-End, 125 VAC, 20 A, NEMA 3/3R/7BCD/9EFG, Aluminum, Gray
Additional Description: APLE-EFS250A2023GFI GFI U-LINE RECEPT & AL BOX
Catalog Description: Ground Fault Circuit Interrupter, Constructional Feature Explosionproof, Dust-Ignitionproof, Receptacle Voltage Rating 125 VAC, Receptacle Current Rating 20 Ampere, Hub Size 1/2 Inch, Mating Plug ECP, Enclosure Material Aluminum, Enclosure Finish Baked Gray Epoxy Clad, Enclosure Class I Div 1 Group B C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/7BCD/9EFG, Approval UL, Type Dead-End
EFS250A2023GFI Application
Provides required ground fault protection for portable electrically operated devices, ground fault protection in hazardous locations, highly corrosive atmospheres, wet locations and can be used in conjunction with U-Line factory sealed receptacle on 20 A, 125 VAC, 50/60 Hz branch circuitsEFS250A2023GFI Includes
1/2 in HubEFS250A2023GFI Item Features
- No external seals are required
- Arcing is confined within the devices interior sealed chamber
- Smooth operating test and reset buttons
- Can be installed in standard EFD series mounting boxes
- Choice of malleable iron or aluminum, dead end or feed thru styles
- Cast copper-free aluminum cover and sealing chamber
- Stainless steel cover bolts, test/reset buttons and shafts
- Baked gray epoxy clad cover and sealing chamber
- Constructional feature explosionproof and dust-ignitionproof
- Factory sealed
EFS250A2023GFI Standards
CSA C22.2 #25/C22.2 #30/C22.2 #42/C22 #159/038644|NEC/CEC Class I Division 1 and 2 Group B C D/Class II Division 1 and 2 Group F G/Class III|UL E81751/943/1203SKU #2243561Part Number #EFS250A2023GFIUNSPSC39121406UPC00781381671293
Image provided may only be a representation of final product and may include optional equipment
