Appleton EFS2752023 Explosionproof Receptacle Assembly
Part Number # EFS2752023
SKU # 2354877
EFS2752023
Appleton EFS2752023 Explosionproof Receptacle Assembly
Part Number # EFS2752023
SKU # 2354877
Appleton EFS2752023 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFS2752023 |
| SKU #: | 2354877 |
| Dimensions: | 5.63 in H x 6.19 in W x 5.64 in D |
| Type: | 2-Gang Dust-Ignitionproof Dead End |
| UNSPSC: | 39121406 |
| UPC: | 00781381282000 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFS2752023 Explosionproof Receptacle Assembly
Brand: Appleton
Part Number: EFS2752023
Appleton U-Line Explosionproof Receptacle Assembly, 2-Gang Dust-Ignitionproof Dead End, 125 V AC, 20 A, 1 hp, 3 Pole, 2 Wires, NEMA 3/3R NEMA, Copper Free Aluminum, 5.63 in H x 6.19 in W x 5.64 in D Dimensions
Additional Description: APLE-EFS2752023 RECP 2 GANG 20A 2W3P 125V
Catalog Description: U-Line 2-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Malleable Iron Mounting Box, Nema
EFS2752023 Application
ECP and NCP Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps ApplicationsEFS2752023 Item Features
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Glass filled reinforced polyester insulating blocks
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line explosionproof receptacles
- Intermateable with competitors plugs of like configurations
EFS2752023 Standards
Class I, Division 1 And 2 Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 And 2 Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644SKU #2354877Part Number #EFS2752023UNSPSC39121406UPC00781381282000

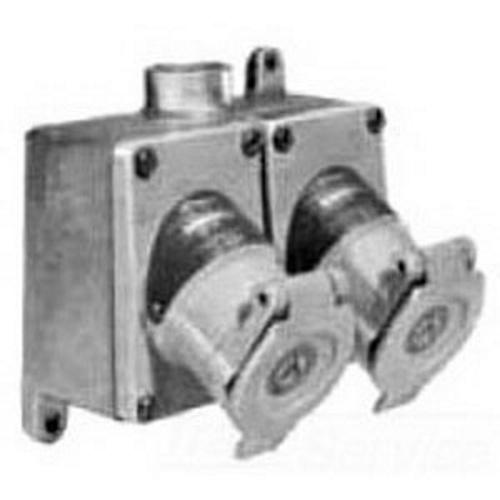

Image provided may only be a representation of final product and may include optional equipment
