Part Number # EFS275A2023GFI
SKU # 2465222
EFS275A2023GFI
Appleton EFS275A2023GFI
Part Number # EFS275A2023GFI
SKU # 2465222
$2053.46 / Each
Appleton EFS275A2023GFI Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFS275A2023GFI |
| SKU #: | 2465222 |
| NEMA Rating: | NEMA 3/3R/7BCD/9EFG |
| Type: | 2-Gang Dead End Dust-Ignitionproof |
| UNSPSC: | 39121406 |
| UPC: | 00781381671309 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2053.46 / Each
Quantity:

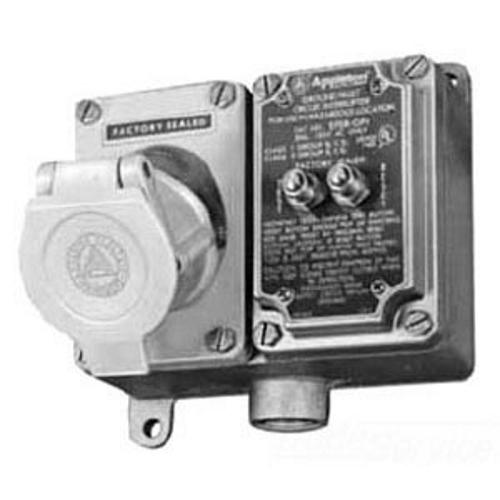

- Appleton U-Line Explosionproof Receptacle Assembly, 2-Gang Dead End Dust-Ignitionproof, 125 V AC, 20 A, NEMA 3/3R/7BCD/9EFG NEMA, Aluminum
EFS275A2023GFI Application
Highly Corrosive Atmospheres and Wet Locations, U-Line Factory Sealed Receptacle on 20 A, 125 VAC 50/60 Hz Branch CircuitsEFS275A2023GFI Includes
GFI Cover, U-Line Receptacle and BoxEFS275A2023GFI Item Features
- EFSR-GFI cover installed on two gang EFD box together with U-Line factory sealed receptacle
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Glass filled reinforced polyester insulating blocks
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line explosionproof receptacles
- Intermateable with competitors plugs of like configurations
EFS275A2023GFI Standards
Class I, Groups C and D, Class II, Groups F and G and Class III|UL File No. E81751|UL 943|UL 1203EFS275A2023GFI Warranty
LimitedSKU #2465222Part Number #EFS275A2023GFIUNSPSC39121406UPC00781381671309
Image provided may only be a representation of final product and may include optional equipment
