Part Number # EFSC1752023
SKU # 2430862
EFSC1752023
Appleton EFSC1752023 U-Line Explosionproof Receptacle Assembly
Part Number # EFSC1752023
SKU # 2430862
Appleton EFSC1752023 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFSC1752023 |
| SKU #: | 2430862 |
| Amperage Rating: | 20 A |
| Dimensions: | 6.13 in H x 3 in W x 5.69 in D |
| Horsepower: | 1 hp |
| NEMA Rating: | NEMA 3/3R |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Type: | 1-Gang Dust-Ignitionproof Feed Through |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381284004 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFSC1752023 U-Line Explosionproof Receptacle Assembly
Brand: Appleton
Part Number: EFSC1752023
Appleton® U-Line™ Explosionproof Receptacle Assembly, 1-Gang Dust-Ignitionproof Feed Through, 125 VAC, 20 A, 1 hp, 3 Pole, 2 Wires, NEMA 3/3R NEMA, Copper Free Aluminum, 6.13 in H x 3 in W x 5.69 in D Dimensions
Additional Description: APLE-EFSC1752023 INDUST RECEPT 20A 2W 3P 3/4 C
Catalog Description: U-Line 1-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Malleable Iron Mounting Box, Nema Rating: NEMA 3, 3R, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, Motor Horsepower: 1 HP, Finish: Epoxy Powder Coat, Dimensions: 3 IN Width X 6.13 IN Height X 5.69 IN Depth, Standard: Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups F, G, Class III, UL Listed: E10784, E81751, UL Standard: 1203, 1010, 894, CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159, CSA Certified: 038644, For ECP And NCP Mating Plugs
EFSC1752023 Application
ECP and NCP Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps ApplicationsEFSC1752023 Item Features
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Glass filled reinforced polyester insulating blocks
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line explosionproof receptacles
- Intermateable with competitors plugs of like configurations
EFSC1752023 Standards
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644SKU #2430862Part Number #EFSC1752023UNSPSC39121406UPC00781381284004

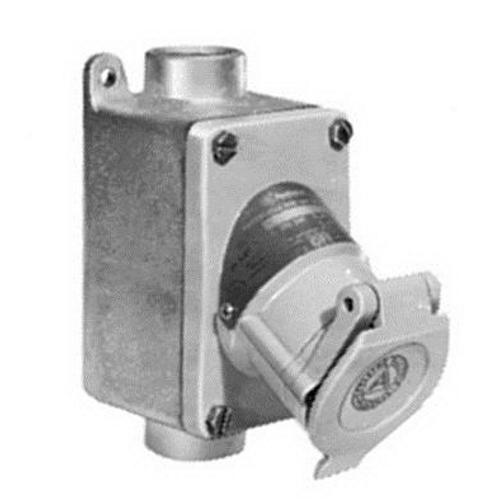

Image provided may only be a representation of final product and may include optional equipment
