Part Number # EFSC175F1
SKU # 2456656
EFSC175F1
Appleton EFSC175F1
Part Number # EFSC175F1
SKU # 2456656
Appleton EFSC175F1 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFSC175F1 |
| SKU #: | 2456656 |
| Actuator: | Front Operated Lever |
| Amperage Rating: | 20 A |
| Dimensions: | 6.13 in H x 3 in W x 4.53 in D |
| Finish: | Triple Coated |
| NEMA Rating: | NEMA 7CD/9EFG |
| Number of Poles: | 1 |
| Series: | EFS |
| Type: | 1-Gang Feed-Through Non-Sealed |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381284059 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFSC175F1
Brand: Appleton
Part Number: EFSC175F1
Appleton® Tumbler Switch Control Station, 1-Gang Feed-Through Non-Sealed, Series: EFS, 120/277 VAC, 20 A, 1 Pole, Front Operated Lever Actuator, NEMA 7CD/9EFG, Surface Mounting, Malleable Iron, Triple Coated, 6.13 in H x 3 in W x 4.53 in D Dimensions
Additional Description: APLE-EFSC175F1 3/4 EXPL PROOF SWITCH
Catalog Description: EFS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Actuator: Front Operated, Enclosure: NEMA 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, HP Rating: 1 HP At 12
EFSC175F1 Application
Used in classified areas where ignitable vapors, gases or highly combustible dusts are present, installation in chemical plants, petrochemical plants, refineries and other process industriesEFSC175F1 Includes
Internal Ground ScrewEFSC175F1 Item Features
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure
- Stainless steel hex head cap screws for attaching cover to mounting enclosure
- Choice of front operating or side rocker arm handle-each may be locked in ON or OFF position
- Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements
- For use in classified areas where ignitable vapors, gases or highly combustible dusts are present
- Explosion proof dust-ignitionproof
EFSC175F1 Standards
UL 894|UL 1203 File No. E10523/E81751|NEC class I, Div 1 and 2, Groups C, D class II, Div 1 and 2, Groups E, F, G class IIISKU #2456656Part Number #EFSC175F1UNSPSC39121565UPC00781381284059

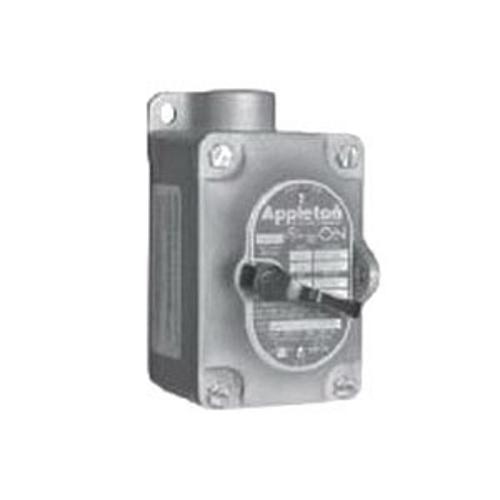

Image provided may only be a representation of final product and may include optional equipment
