EFSFR1Q
Appleton EFSFR1Q
Part Number # EFSFR1Q
SKU # 2469764
Appleton EFSFR1Q Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFSFR1Q |
| SKU #: | 2469764 |
| Actuator: | Front Operated Lever |
| Amperage Rating: | 20 A |
| Finish: | Triple Coated |
| NEMA Rating: | NEMA 7CD/9EFG |
| Number of Poles: | 1 |
| Series: | EFS |
| Type: | 1-Gang Non-Sealed |
| Country of origin: | CN |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121565 |
| UPC: | 00781381287302 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EFSFR1Q
Brand: Appleton
Part Number: EFSFR1Q
Appleton® Tumbler Switch Control Station, 1-Gang Non-Sealed, Series: EFS, 120/277 VAC, 20 A, 1 Pole, Front Operated Lever Actuator, NEMA 7CD/9EFG, Surface Mounting, Malleable Iron, Triple Coated
Additional Description: APLE-EFSFR1Q EFS TUMBLER SWITCH
Catalog Description: UNILETS EFS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Enclosure: NEMA 7CD, 9EFG, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Material: Malleable Iron Body, Nylon 6/6 Handle, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 1.6 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present
EFSFR1Q Application
Used in classified areas where ignitable vapors, gases or highly combustible dusts are present, installation in chemical plants, petrochemical plants, refineries and other process industriesEFSFR1Q Includes
Internal Ground ScrewEFSFR1Q Item Features
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure
- Stainless steel hex head cap screws for attaching cover to mounting enclosure
- Choice of front operating or side rocker arm handle-each may be locked in ON or OFF position
- Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements
- For use in classified areas where ignitable vapors, gases or highly combustible dusts are present
- Explosion proof dust-ignitionproof
EFSFR1Q Standards
UL 894|UL 1203 File No. E10523/E81751|NEC class I, Div 1 and 2, Groups C, D class II, Div 1 and 2, Groups E, F, G class IIIEFSFR1Q Warranty
5 YearsSKU #2469764Part Number #EFSFR1QUNSPSC39121565UPC00781381287302

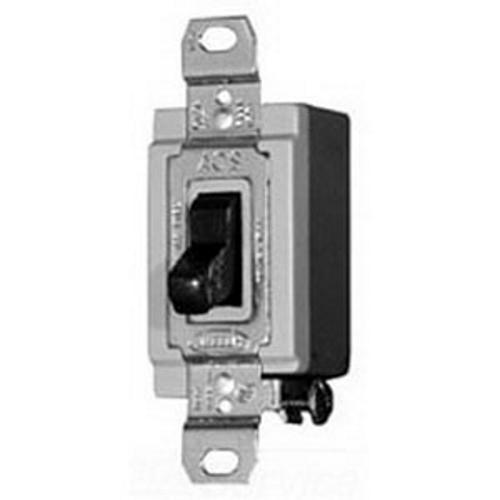

Image provided may only be a representation of final product and may include optional equipment
