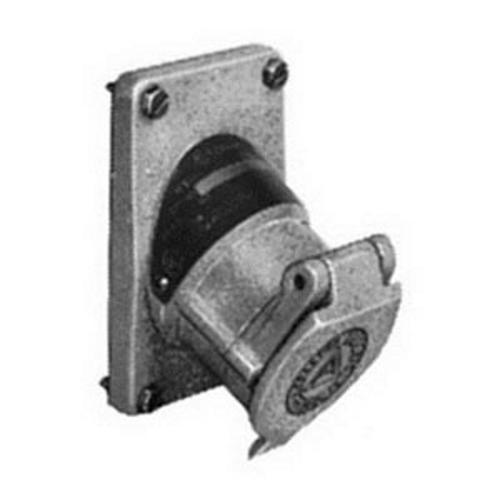

Appleton EFSR2023 Explosionproof Receptacle Cover Assembly
Part Number # EFSR2023
SKU # 2237365
$513.53 / Each
Appleton EFSR2023 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EFSR2023 |
| SKU #: | 2237365 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 4.63 in H x 3 in W x 3.19 in D |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | NEMA 3/3R |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Type: | Dust-Ignitionproof |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381288057 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$513.53 / Each
Quantity:
- Appleton U-Line Explosionproof Receptacle Cover Assembly, Dust-Ignitionproof, 125 V AC, 20 A, 1 hp, 3 Pole, 2 Wires, NEMA 3/3R NEMA, Copper Free Aluminum, 4.63 in H x 3 in W x 3.19 in D Dimensions
EFSR2023 Application
ECP Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps ApplicationsEFSR2023 Item Features
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- Glass filled reinforced polyester insulating blocks
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line explosionproof receptacles
- Intermateable with competitors plugs of like configurations
EFSR2023 Standards
Class I, Division 1 And 2 Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 And 2 Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644SKU #2237365Part Number #EFSR2023UNSPSC39121406UPC00781381288057
