Part Number # ELBD150
SKU # 2266232
ELBD150

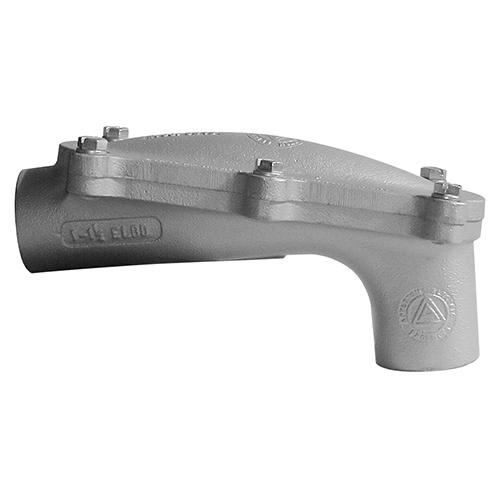

Appleton ELBD150 Conduit Elbow
Part Number # ELBD150
SKU # 2266232
Appleton ELBD150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ELBD150 |
| SKU #: | 2266232 |
| Angle: | 90, 90 deg |
| Dimensions: | 6-3/4 in H x 4.94 in W |
| Finish: | Triple Coated |
| Series: | ELBD |
| Suitable For Use With: | Threaded Metallic Conduit |
| Trade Size: | 1-1/2, 1-1/2 in |
| Type: | Dust-Ignitionproof Explosionproof Pulling Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131717 |
| UPC: | 00781381293303 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton ELBD150 Conduit Elbow
Brand: Appleton
Part Number: ELBD150
Appleton UNILETS Conduit Elbow, Dust-Ignitionproof Explosionproof Pulling Raintight, Series: ELBD, 1-1/2 in, 90 deg, For Use With: Threaded Metallic Conduit, Malleable Iron, Triple Coated, 6-3/4 in H x 4.94 in W
Additional Description: APLE-ELBD150 1 1/2 ELBD EXPL PROOF PULLING
Catalog Description: ELBD Series 90 DEG Pulling Elbow, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Trade Size: 1-1/2 IN, Flexibility: EMT, Connection: Female Threaded, Dimensions: 4.94 IN Width X 6-3/4 IN Height, Standard: UL 886, UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class 1, Division 1 And 2, Group D Class II, Division 1 And 2, Groups E, F, G Class III, For Use With Metal Conduit
ELBD150 Item Features
- Serves as pulling fitting
- Makes 90 deg bend in conduit runs
- Built in rollers to facilitate cable pulling
- Permits easy access to pulling conductors
- Easily removable covers
- Chromate/epoxy powder coated/zinc electroplated finish
ELBD150 Standards
UL 886|UL File No. E10444, E85310|CSA C22.2 No. 30|CSA 065181|Class 1, Div 1 and 2, Group D Class II, Div 1 and 2, Groups E, F, G Class IIISKU #2266232Part Number #ELBD150UNSPSC39131717UPC00781381293303
Image provided may only be a representation of final product and may include optional equipment
