ENR22201
Appleton ENR22201
Part Number # ENR22201
SKU # 2456244
$673.20 / Each
Typical price:$749.22 / Each
Appleton ENR22201 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ENR22201 |
| SKU #: | 2456244 |
| Amperage Rating: | 20 A |
| Dimensions: | 6.06 in H x 7.19 in W x 6.19 in D |
| NEMA Rating: | NEMA 3RX |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Type: | 2-Gang Dead End Dust-Ignitionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381815420 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$673.20 / Each
Typical price:$749.22 / Each
Quantity:

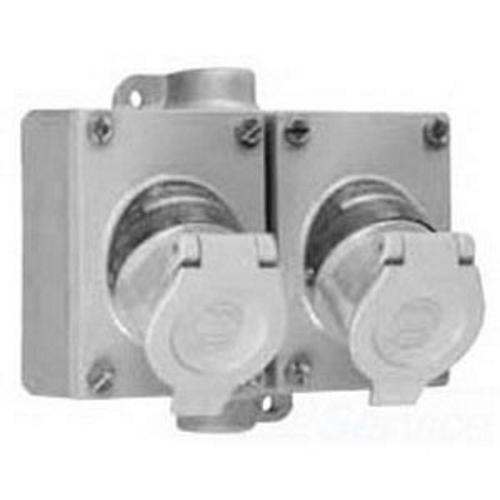

- Appleton U-Line Contender Explosionproof Receptacle Assembly, 2-Gang Dead End Dust-Ignitionproof, 125 V AC, 20 A, 3 Pole, 2 Wires, NEMA 3RX NEMA, Malleable Iron, 6.06 in H x 7.19 in W x 6.19 in D Dimensions
ENR22201 Application
ECP Mating Plugs, Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps ApplicationsENR22201 Item Features
- Covers are UL Listed when used with Contender series back boxes
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Fiberglass reinforced thermoset polyester insulating blocks
- Dead front design receptacle is not energized until plug is fully inserted and switch is engaged
- ECP plug fits U-Line explosionproof receptacles
- U-Line Contender receptacles only available for use in combination with 1 and 2-gang EDS boxes incorporating such devices as pilot lights, switches and push buttons
ENR22201 Standards
Class I, Groups C, D; Class I, Division 2, Group B; Class I, Zone 1, Group IIB; Class I, Zone 2, Group IIB + H2; Class II, Groups F, G; Class III; UL Listed: E10784; UL 1203, UL 1010, UL 894SKU #2456244Part Number #ENR22201UNSPSC39121406UPC00781381815420
