Part Number # ENR31201
SKU # 2455230
ENR31201
Appleton ENR31201
Part Number # ENR31201
SKU # 2455230
Appleton ENR31201 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ENR31201 |
| SKU #: | 2455230 |
| Amperage Rating: | 20 A |
| NEMA Rating: | NEMA 3RX |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Series: | ENR |
| Type: | 1-Gang Dust-Ignitionproof Dead End |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381815376 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton ENR31201
Brand: Appleton
Part Number: ENR31201
Appleton® U-Line™ Contender™ Explosionproof Receptacle, 1-Gang Dust-Ignitionproof Dead End, Series: ENR, 125 VAC, 20 A, 3 Pole, 2 Wires, NEMA 3RX, Malleable Iron
Additional Description: APLE-ENR31201 SINGLE GANG RECEPT ASSY
Catalog Description: Pin and Sleeve Receptacle Assembly, Type Dead End, Voltage Rating 125 VAC, Current Rating 20 Ampere, Number of Poles 3, Number of Wires 2, Hub Size 1 Inch, Box Type Single Gang, Cover Type Spring, Mating Plug ECP-2023, NCP-2023, Enclosure Class I Group C D, Class I Div 2 Group B, Class I Zone 1 Group IIB, Class I Zone 2 Group IIB + H2, Class II Group F G, Class III, NEMA 3RX, Approval UL 894/1010/1203, Application Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors, Pumps, Constructional Feature Explosionproof, Dust-Ignitionproof, Material Zinc Electroplated Chromate Epoxy Powder Coated Copper-Free Aluminum Cover, Malleable Iron Body
ENR31201 Application
Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and PumpsENR31201 Item Features
- Covers are UL Listed when used with Contender series back boxes
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Fiberglass reinforced thermoset polyester insulating blocks
- Dead front design receptacle is not energized until plug is fully inserted and switch is engaged
- ECP plug fits U-Line explosionproof receptacles
- U-Line Contender receptacles only available for use in combination with 1 and 2-gang EDS boxes incorporating such devices as pilot lights, switches and push buttons
ENR31201 Standards
UL File No. E10784, 1203, 1010, 894|Class I Groups C, D, Division 2, Group B, Zone 1, Group IIB, Zone 2, Group IIB + H2 Class II, Groups F, G|Class III NEMA 3RXSKU #2455230Part Number #ENR31201UNSPSC39121406UPC00781381815376

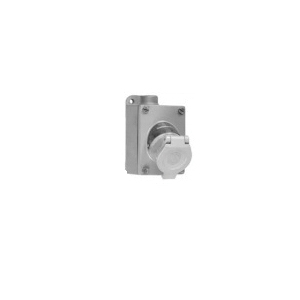

Image provided may only be a representation of final product and may include optional equipment
