Part Number # ENRC31201
SKU # 2282379
Image Disclaimers Message
ENRC31201

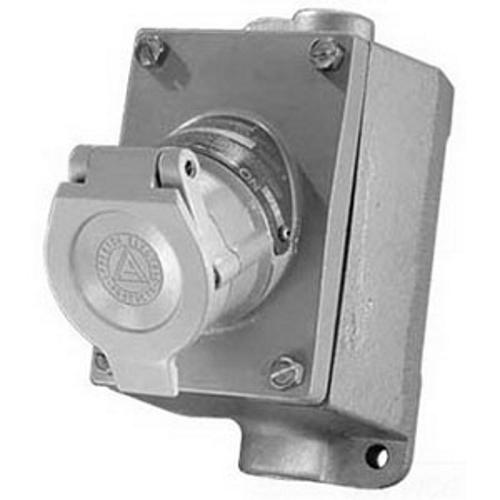

Appleton ENRC31201 Receptacle
Part Number # ENRC31201
SKU # 2282379
$335.66 / Each
Typical price:$373.57 / Each
Appleton ENRC31201 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ENRC31201 |
| SKU #: | 2282379 |
| Amperage Rating: | 20, 20 A |
| Frequency Rating: | 60, 60 Hz |
| NEMA Rating: | NEMA 3RX |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Type: | 1-Gang Feed Through |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381815406 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$335.66 / Each
Typical price:$373.57 / Each
Quantity:
- Appleton U-Line Contender Receptacle, 1-Gang Feed Through, 125 V AC, 20 A, 60 Hz, 3 Pole, 2 Wires, NEMA 3RX, Aluminum
ENRC31201 Application
Lighting Systems, Conveyors, Heaters, Motor-Generator Sets, Air Conditioners, Compressors and Pumps ApplicationsENRC31201 Item Features
- Covers are UL listed when used with Contender series back boxes
- ECP plug fits any standard non-explosionproof receptacle (NEMA 5-20R or 6-20R) as well as U-Line explosionproof receptacles
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Receptacle is not energized until plug is fully inserted and switch is engaged dead front design
- For ECP mating plugs
ENRC31201 Standards
Class I, Groups C, D; Class I, Division 2, Group B; Class I, Zone 1, Group IIB; Class I, Zone 2, Group IIB + H2; Class II, Groups F, G; Class III; UL Listed: E10784; UL 1203, UL 1010, UL 894SKU #2282379Part Number #ENRC31201UNSPSC39121406UPC00781381815406
