Appleton ESD75 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ESD75 |
| SKU #: | 2469913 |
| Finish: | Electro-Plated Zinc/Chromate/Epoxy Powder Coated |
| Series: | ESD |
| Size: | 3/4 in |
| Suitable For Use With: | Threaded Metal Conduit, Rigid Fixture Hangers Where Fixture Stem is More Than 12 in L |
| Type: | Dust Ignition/Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39111817 |
| UPC: | 00781381303750 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

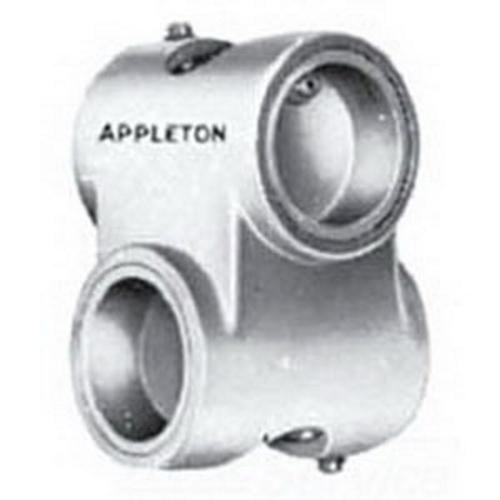

Appleton ESD75
Brand: Appleton
Part Number: ESD75
Appleton® UNILETS™ Lighting Fixture Swivel Hanger, Dust Ignition/Explosionproof, Series: ESD, 3/4 in, For Use With: Threaded Metal Conduit, Rigid Fixture Hangers Where Fixture Stem is More Than 12 in L, Malleable Iron, Electro-Plated Zinc/Chromate/Epoxy Powder Coated
Additional Description: APLE-ESD75 SWIVEL-JOINT 3/4 EXPLO-PROOF
Catalog Description: UNILETS 15 DEG Swivel Hanger, Size: 3/4 IN, Material: Malleable Iron, Lamp Type: Incandescent, Fluorescent, HID, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: Class I, Division 1 And 2, Groups A, B, C, D
ESD75 Application
For HID, incandescent and fluorescent lighting fixturesESD75 Item Features
- Set screw with screwdriver slot allows locking of conduit prevents fixture stem from turning
- 15 deg swivel from center and full 360 deg free swing
- 3/4 in fixture stem
ESD75 Standards
Class I, Division 1 and 2, Groups A, B, C, D|Class II, Division 1 and 2, Groups E, F, G|Class III|UL 886 File No. E10444|CSA 065182|NEC 501-9(a)(b)|NEC 502-11(a)(b)|CEC CertifiedSKU #2469913Part Number #ESD75UNSPSC39111817UPC00781381303750
Image provided may only be a representation of final product and may include optional equipment
