ESUF100

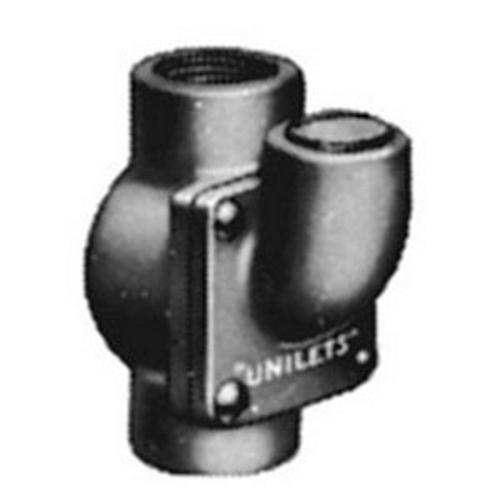

Appleton ESUF100 Conduit Sealing Fitting
Part Number # ESUF100
SKU # 3330
$75.95 / Each
Appleton ESUF100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ESUF100 |
| SKU #: | 3330 |
| Dimensions: | 3.38 in L x 3.25 in W |
| Finish: | Tri-Coated |
| Series: | ESU |
| Size: | 1, 1 in |
| Suitable For Use With: | IMC/Threaded Rigid Metal Conduit |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00781381306454 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$75.95 / Each
Quantity:
- Appleton Unilets Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof, Series: ESU, 1 in, For Use With: IMC/Threaded Rigid Metal Conduit, Surface Mount, Malleable Iron, Tri-Coated, 3.38 in L x 3.25 in W
ESUF100 Item Features
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- For sealing vertical or horizontal conduit
- Pouring spout rotates 90 deg
- Removable cover provides full access for damming 1/2 to 1 in sizes have threaded cover openings for damming
- 1-1/4 in turning radius
- Triple coat of zinc electroplate, chromate and epoxy powder coated finish
- Prevent passage of gases, vapors or flames from one portion of conduit system to another
- Restrict any explosion to the sealed off enclosure
- Required in class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit
- Seal must be located within 18 in of either enclosure
ESUF100 Standards
Class I, Div 1, 2, Groups C, D|Class II, Div 1, 2, Groups E, F, G|Class III|UL 886/1203|UL File No. E10444|CSA C22.2 No.30, 065181SKU #3330Part Number #ESUF100UNSPSC39121311UPC00781381306454
