Part Number # ESUM50
SKU # 2158435
ESUM50
Appleton ESUM50 Conduit Sealing Fitting
Part Number # ESUM50
SKU # 2158435
Appleton ESUM50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ESUM50 |
| SKU #: | 2158435 |
| Dimensions: | 3 in L x 2.94 in W |
| Finish: | Triple Coated |
| Series: | ESUM |
| Size: | 1/2, 1/2 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00781381306751 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton ESUM50 Conduit Sealing Fitting
Brand: Appleton
Part Number: ESUM50
Appleton UNILETS Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: ESUM, 1/2 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated, 3 in L x 2.94 in W
Additional Description: APLE-ESUM50 SEALING UNILET 1/2 MALE/FEMALE
Catalog Description: Explosionproof Rigid/IMC Conduit Seal, Turning Radius 1.25 Inch, Trade Size 1/2 Inch, Connection Type Male, Female, Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Mounting Position Horizontal/Vertical, Enclosure Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, Approval UL 886/E10444, CSA C22.2, Size 3 Inch L x 2.94 Inch W, Constructional Feature Explosionproof, Dust-Ignitionproof, Raintight, Used On Threaded Rigid/IMC Metal Conduit, Includes Removable Male Nipple
ESUM50 Application
For prevent passage of gases, vapors or flames from one portion of conduit system to anotherESUM50 Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- For sealing vertical or horizontal conduit
- Pouring spout rotates 90 deg
- Removable cover provides full access for damming 1/2 in thru 1 in sizes have threaded cover openings for damming
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit
- Seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
- Chromate/epoxy powder coated/zinc electroplated finish
ESUM50 Standards
UL 886|UL 1203|UL File No. E10444|CSA C22.2 No. 30|CSA 065181, Class I, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G Class IISKU #2158435Part Number #ESUM50UNSPSC39121311UPC00781381306751

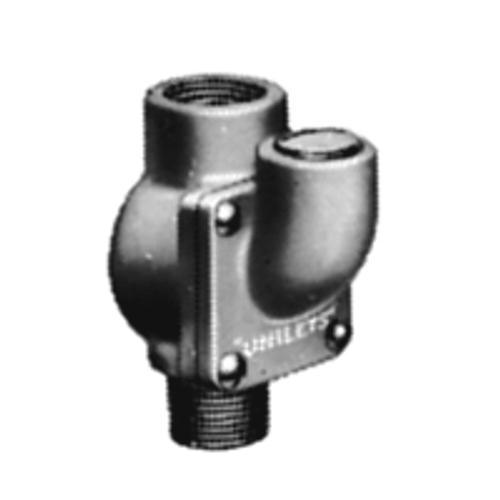

Image provided may only be a representation of final product and may include optional equipment
