Part Number # EXB101006
SKU # 2265774
Image provided may only be a representation of
final product and may include optional equipment
EXB101006

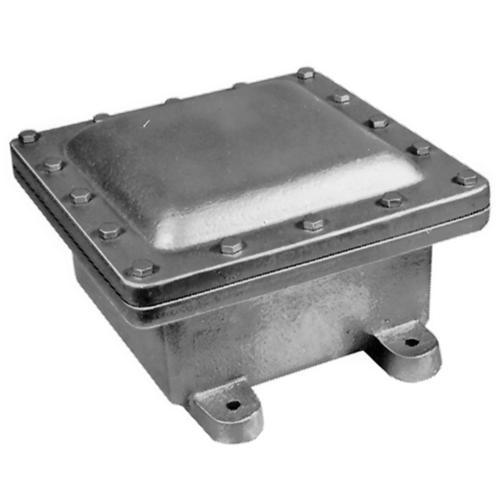

Appleton EXB101006 Cast Junction Box
Part Number # EXB101006
SKU # 2265774
Appleton EXB101006 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EXB101006 |
| SKU #: | 2265774 |
| Finish: | Hot Dipped Galvanized |
| Series: | EXB, EXB Series |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | US |
| Material: | Cast Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121331 |
| UPC: | 00781381603126 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EXB101006 Cast Junction Box
Brand: Appleton
Part Number: EXB101006
Appleton Cast Junction Box, Dust-Ignitionproof Explosionproof, Series: EXB, Screw-On Cover, Cast Iron, Hot Dipped Galvanized
Additional Description: APLE-EXB101006 JUNCTION BOX EXPLOSION PROOF
Catalog Description: Explosionproof Cast Junction Box, Hub Size 3-1/2 Inch, Inner Size 10 Inch L x 10 Inch W x 6 Inch D, Wall Thickness 0.63 Inch, Cover Type Screw-On, Enclosure Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III, Body Material Cast Iron, Body Finish Hot Dip Galvanized, Cover Material Cast Iron, Cover Finish Hot Dip Galvanized, Mounting Feet, Approval UL 886/1203, Constructional Feature Explosionproof, Dust-Ignitionproof
EXB101006 Application
Hazardous Location ApplicationsEXB101006 Includes
Mounting Lug and Integrally Cast Mounting FeetEXB101006 Item Features
- Wide selection of sizes and locations for drilled and tapped conduit openings
- Extra wide, accurately ground mating surfaces with closely spaced stainless steel hex head cap screws assure a flame-tight joint
EXB101006 Standards
CSA C22.2 File No. 25/30/020945|NEC Compliant|CEC Class I Div 1 and 2, Group D|Class II, Div 1 and 2 Groups E, F, G|Class III|UL File No. 886/1203/E10444SKU #2265774Part Number #EXB101006UNSPSC39121331UPC00781381603126
