EXLK210

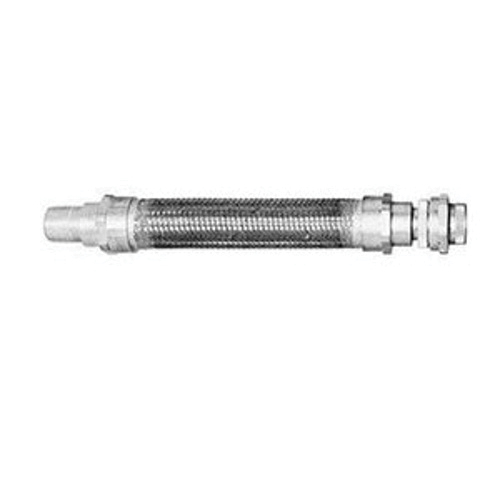

Appleton EXLK210 Conduit Coupling
Part Number # EXLK210
SKU # 2313762
Appleton EXLK210 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EXLK210 |
| SKU #: | 2313762 |
| Dimensions: | 1-3/4 in OD x 10 in L |
| Finish: | Natural |
| Series: | EXLK |
| Size: | 3/4, 3/4 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof Flexible Watertight |
| Country of origin: | MX |
| Material: | Brass/Bronze |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131707 |
| UPC: | 00781381327954 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EXLK210 Conduit Coupling
Brand: Appleton
Part Number: EXLK210
Appleton UNILETS Conduit Coupling, Dust-Ignitionproof Explosionproof Flexible Watertight, Series: EXLK, 3/4 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Brass/Bronze, Natural, 1-3/4 in OD x 10 in L
Additional Description: APLE-EXLK210 3/4 EX FLEXIBLE COUPLING
Catalog Description: Flexible Conduit Coupling, Trade Size 3/4 IN, Fitting Material Natural Finished Brass End, Zinc Plated Steel Union, Material Natural Finished Bronze Braid, Natural Finished Brass Core, End Type (1) Male Nipple, (1) Union, Flex Length 10 IN, Enclosure Class I Group A B C D, Class II Group E F G, Class III, Approval UL 886, CSA C22.2, Includes Insulating Liner, Constructional Feature Explosionproof, Dust-Ignitionproof, Watertight, Used on Rigid Metal Conduit and IMC
EXLK210 Application
For areas where vibration or movement is a problem, place of rigid conduit in difficult bend situationsEXLK210 Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Heavy duty design resists mechanical abuse
- Electrical conductivity equal to rigid conduit on a similar length basis - no bonding jumper required
- Interior insulating liner protects conductors from abrasion under vibrating conditions
- Female end fitting with union at one end and a female end fitting with a removable male nipple at the other end
EXLK210 Standards
UL 886|UL 1203|UL File No. E10444|CSA C22.2 No. 25/30|CSA 065181, Class I, Groups A, B, C, D Class II, Groups E, F, G Class IIISKU #2313762Part Number #EXLK210UNSPSC39131707UPC00781381327954
