Part Number # EYAX50
SKU # 2262514

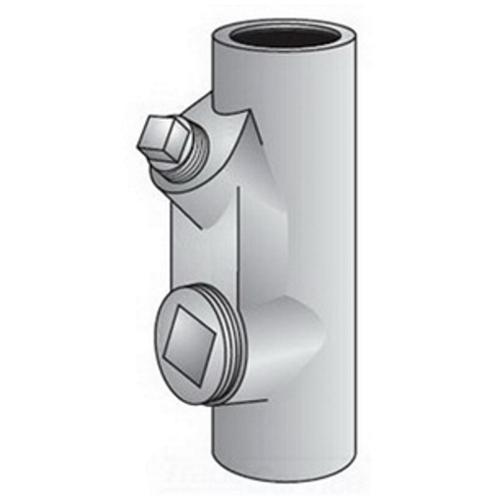

Image provided may only be a representation of
final product and may include optional equipment
EYAX50
Appleton EYAX50 Conduit Sealing Fitting
Part Number # EYAX50
SKU # 2262514
Appleton EYAX50 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EYAX50 |
| SKU #: | 2262514 |
| Dimensions: | 3-11/16 in L x 1-1/4 in W |
| Finish: | Zinc Electroplated |
| Series: | EYAX |
| Size: | 1/2, 1/2 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00783126113945 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EYAX50 Conduit Sealing Fitting
Brand: Appleton
Part Number: EYAX50
O-Z/Gedney Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof, Series: EYAX, 1/2 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Zinc Electroplated, 3-11/16 in L x 1-1/4 in W
Additional Description: APLE-EYAX50 1/2 IN HOR/VERT SEALING FTG
Catalog Description: OZ-Gedney Type EYAX Vertical/Horizontal Sealing Fitting, Size: 1/2 IN, Malleable Iron, Finish: Zinc Electroplated, Connection: Tapered FNPT, Dimensions: 1-3/8 IN Body Diameter X 3-11/16 IN Overall Length, 1-1/4 IN Turning Radius, 1.5 OZ Sealing Compound Required, 1/16 OZ Approximate Amount Of Fiber/Hub Required, Third Party Certification: UL File Number E-34997, CSA 009795 Suitable For Wet Locations, UL Listed Using: O-Z/Gedney EYC Sealing Compound Or Crouse-Hinds Chico Compound, CSA Certified Sealing Compound, Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 & 505, Military Specification: Mil-F-28675, For Rigid Conduit Or IMC
EYAX50 Application
For minimize the passage of gases and vapors and prevent the passage of flames from one portion of the electrical system to another through the conduitEYAX50 Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Allow up to 40% conduit fill in compliance with the National Electrical Code
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit
- Seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
EYAX50 Standards
UL 886|UL File No. E34997|CSA C22.2 No. 30|CSA 009795|NEC Articles 500-503/505|Military Specification Mil-F-28675, Class I, Div 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Div 1, 2, Groups E, F, G, Class IISKU #2262514Part Number #EYAX50UNSPSC39121311UPC00783126113945
