EYF150AL

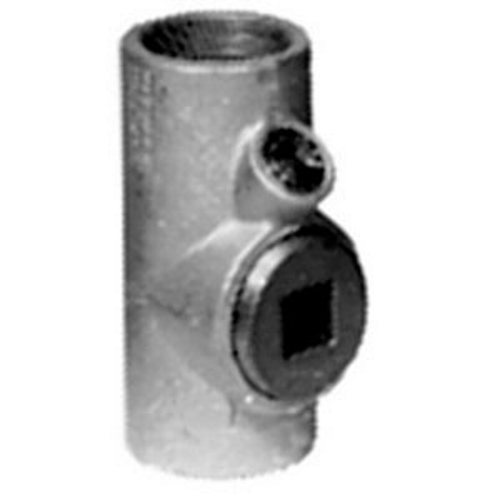

Appleton EYF150AL Unilets Conduit Sealing Fitting
Part Number # EYF150AL
SKU # 2416554
$74.07 / Each
Appleton EYF150AL Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EYF150AL |
| SKU #: | 2416554 |
| Dimensions: | 5.5 in L x 2.38 in W |
| Finish: | Epoxy Powder Coated |
| Series: | EY Series |
| Size: | 1-1/2 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof Raintight |
| Country of origin: | MX |
| Material: | Almag 35 Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00781381600026 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$74.07 / Each
Quantity:
- Appleton UNILETS Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: EY Series, 1-1/2 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Almag 35 Aluminum, Epoxy Powder Coated, 5.5 in L x 2.38 in W
EYF150AL Application
For prevent passage of gases, vapors or flames from one portion of conduit system to anotherEYF150AL Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
- 25% fill vertical and horizontal conduit sealing fittings for close turning radius
EYF150AL Standards
UL 886|UL 1203 File No. E10444|CSA C22.2 No. 30|CSA 065181SKU #2416554Part Number #EYF150ALUNSPSC39121311UPC00781381600026
