Part Number # EYS10
SKU # 2418698
EYS10

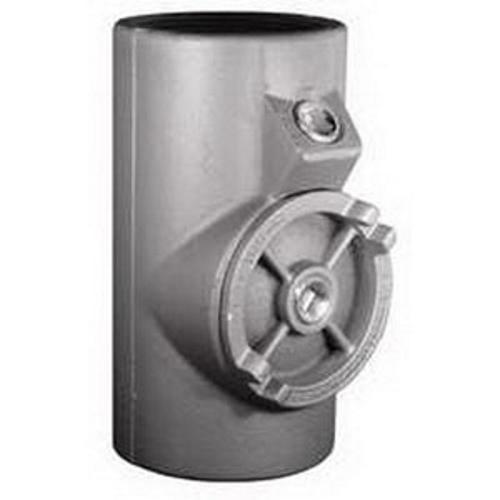

Appleton EYS10 Unilets Conduit Sealing Fitting
Part Number # EYS10
SKU # 2418698
Appleton EYS10 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | EYS10 |
| SKU #: | 2418698 |
| Dimensions: | 9-3/4 in L x 5-1/4 in W |
| Finish: | Triple Coated |
| Series: | EYS |
| Size: | 4 in |
| Suitable For Use With: | IMC/Threaded Rigid Metallic Conduit |
| Type: | Dust-Ignitionproof Explosionproof Raintight |
| Country of origin: | MX |
| Material: | Grayloy-Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00781381621113 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton EYS10 Unilets Conduit Sealing Fitting
Brand: Appleton
Part Number: EYS10
Appleton® UNILETS® Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: EYS, 4 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Grayloy-Iron, Gray, Triple Coated, 9-3/4 in L x 5-1/4 in W
Additional Description: APLE-EYS10 4 FEMALE SEAL-OFF
Catalog Description: UNILETS EYS Series 25 PCT Fill Vertical And Horizontal Sealing Fitting, Size: 4 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Tapered FNPT, Turning Radius: 3.69 IN, Length: 9-3/4 IN, Width: 5-1/4 IN, Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, For Use With Threaded Rigid Metal Conduit and IMC
EYS10 Application
For prevent passage of gases, vapors or flames from one portion of conduit system to anotherEYS10 Item Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Large opening for damming and filling
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
- Tapered FNPT connection
- 25% fill vertical and horizontal conduit sealing fittings for close turning radius
- Chromate/epoxy powder coated/zinc electroplated finish
EYS10 Standards
UL 886|UL 1203 File No. E10444|CSA C22.2 No. 30|CSA 065181SKU #2418698Part Number #EYS10UNSPSC39121311UPC00781381621113
Image provided may only be a representation of final product and may include optional equipment
